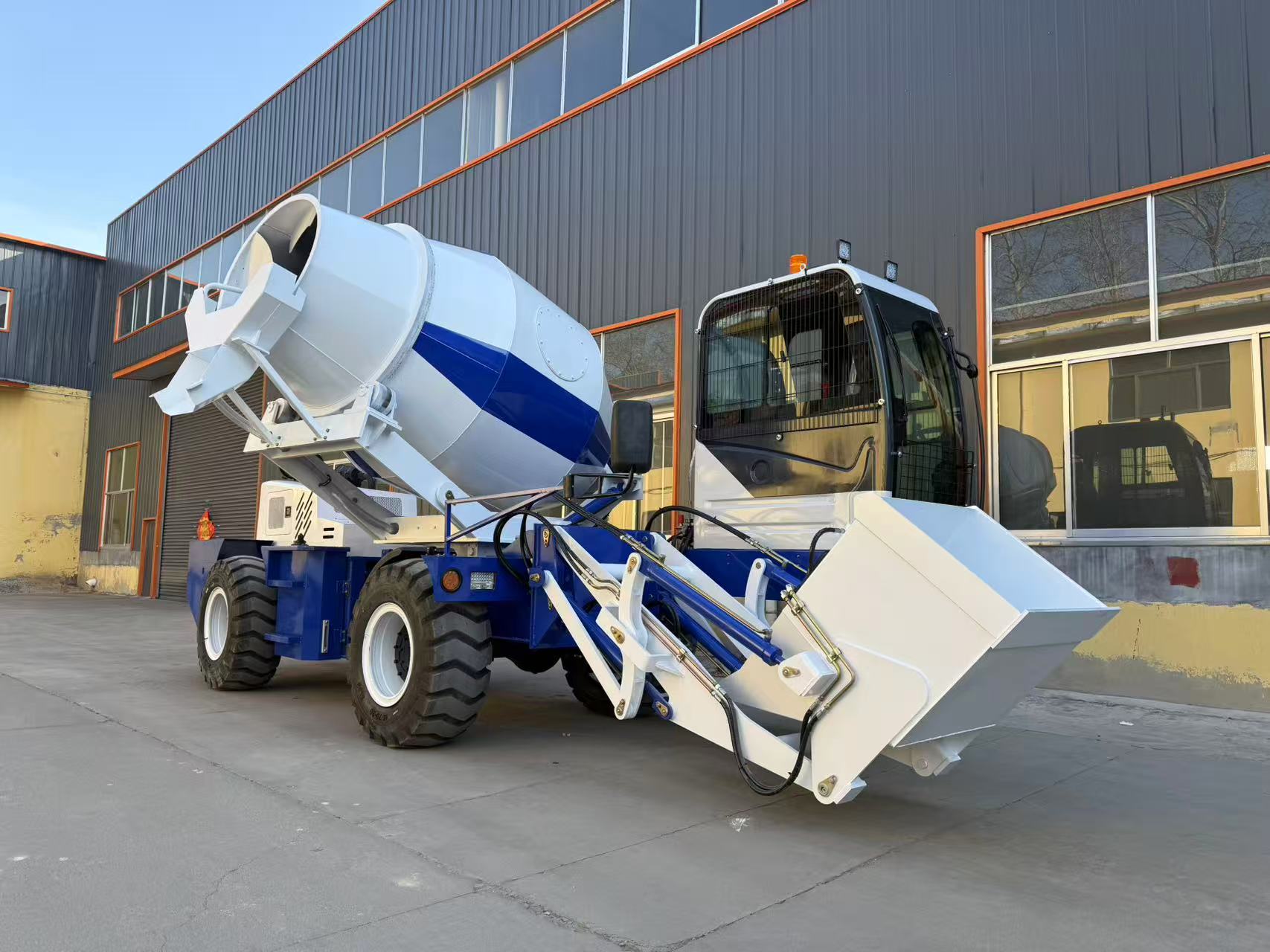

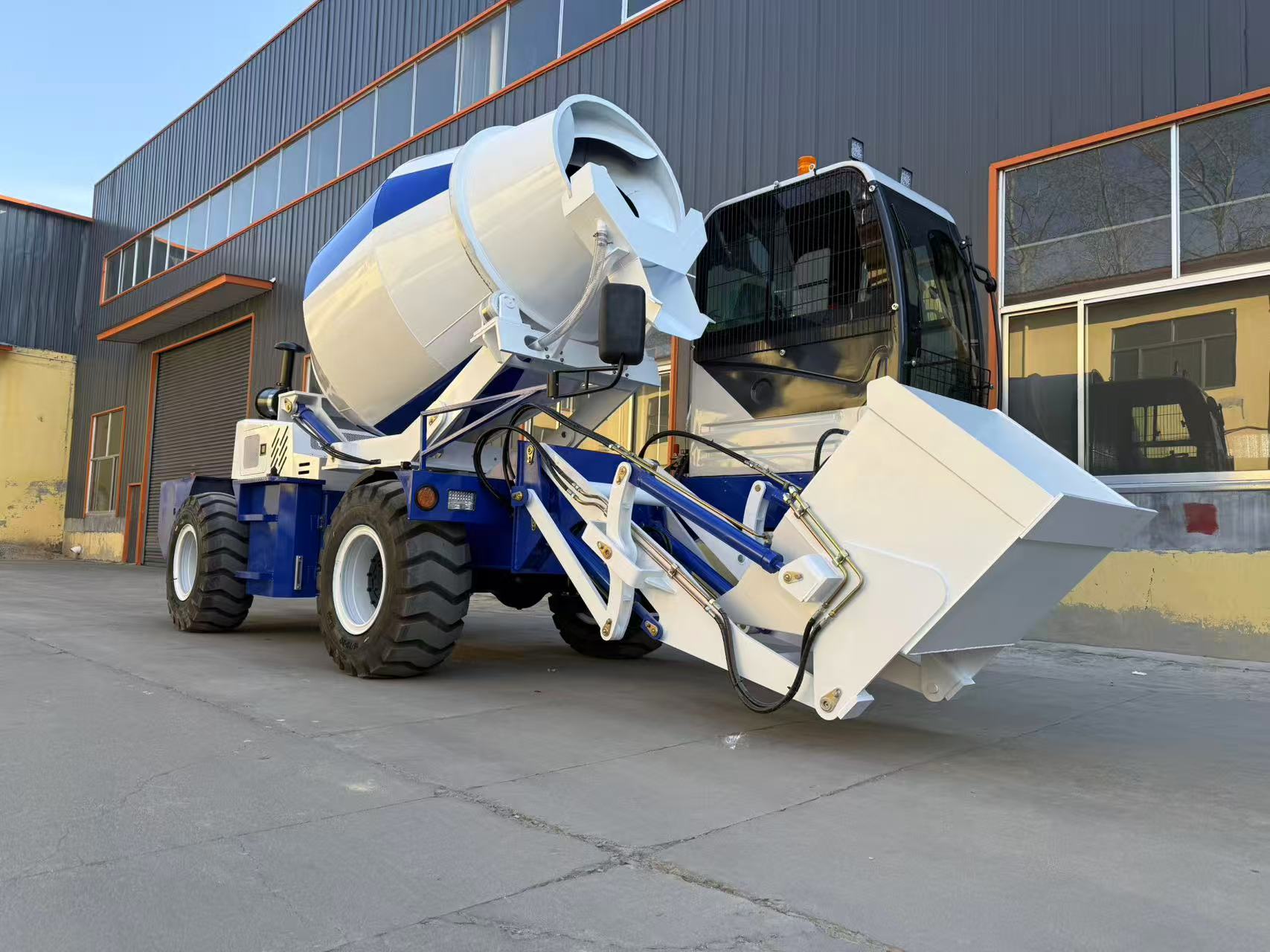

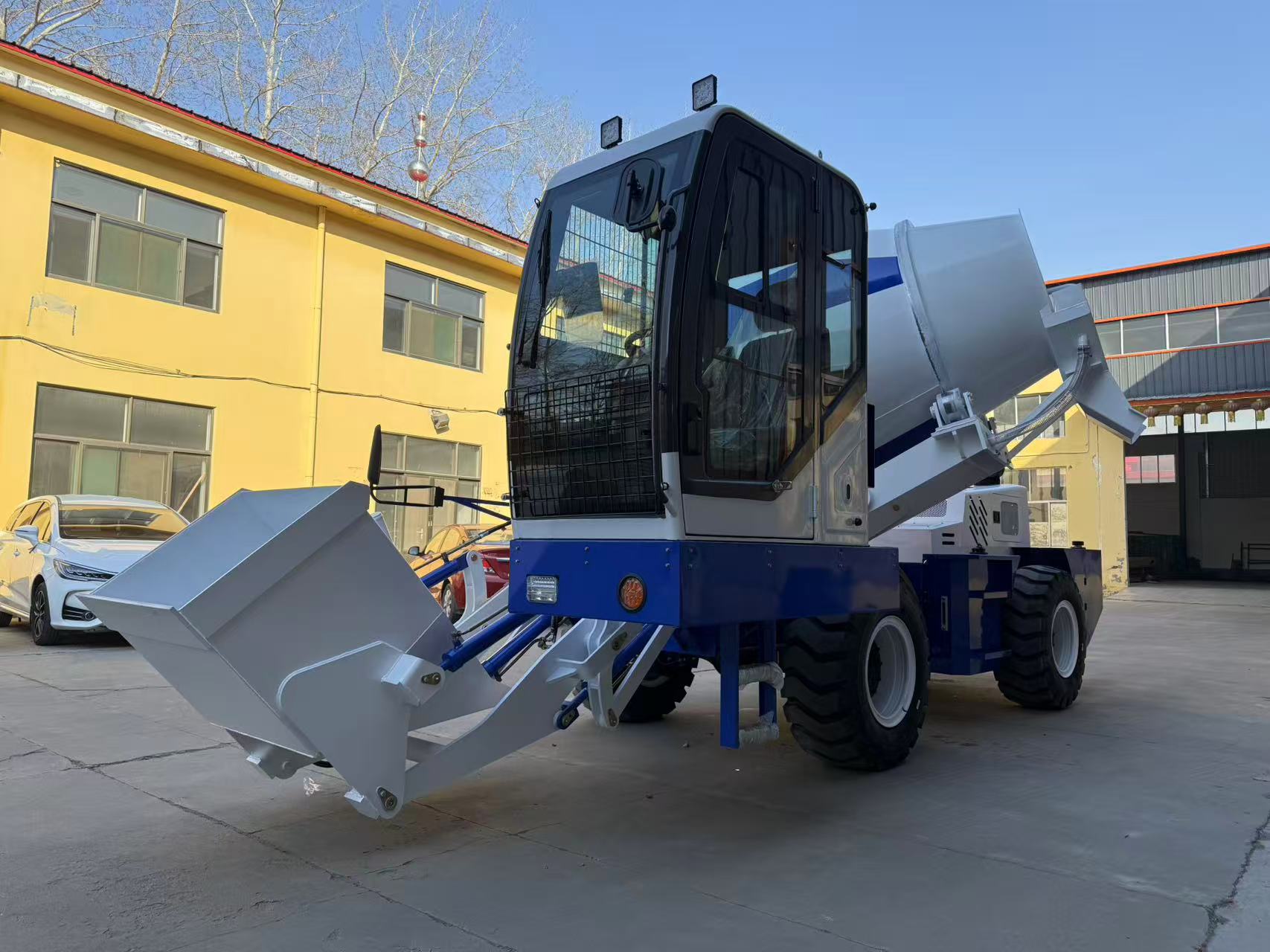

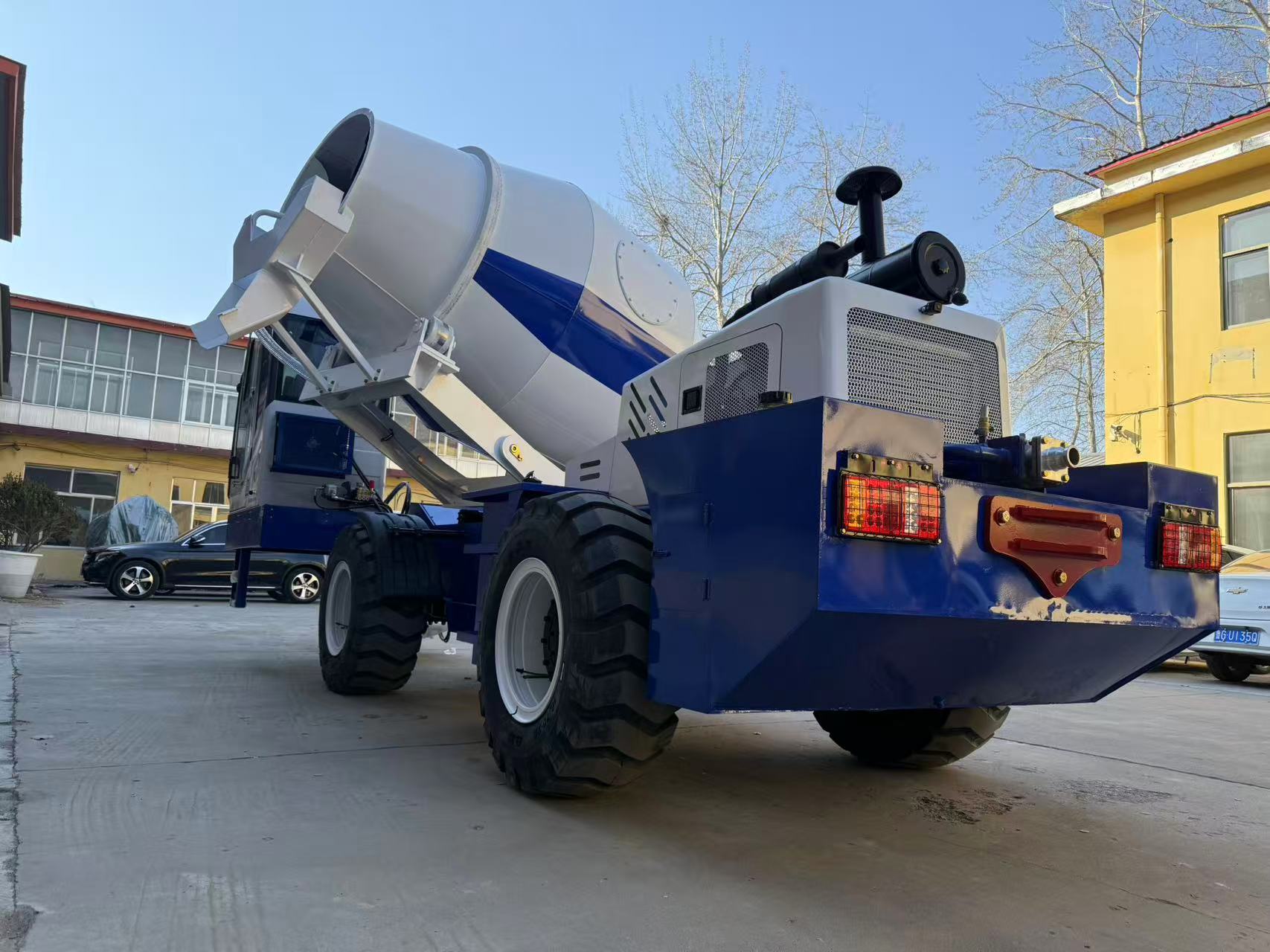

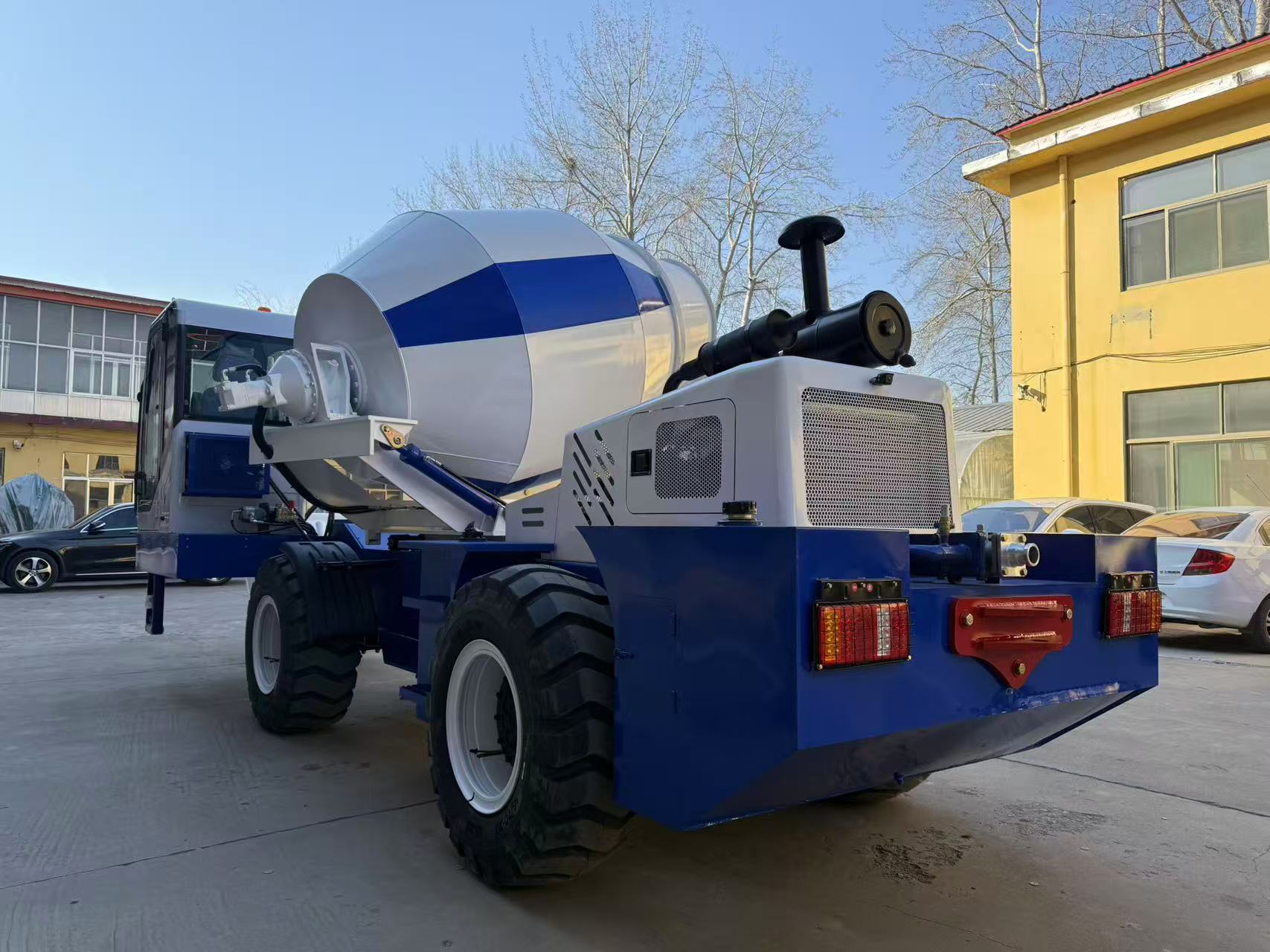

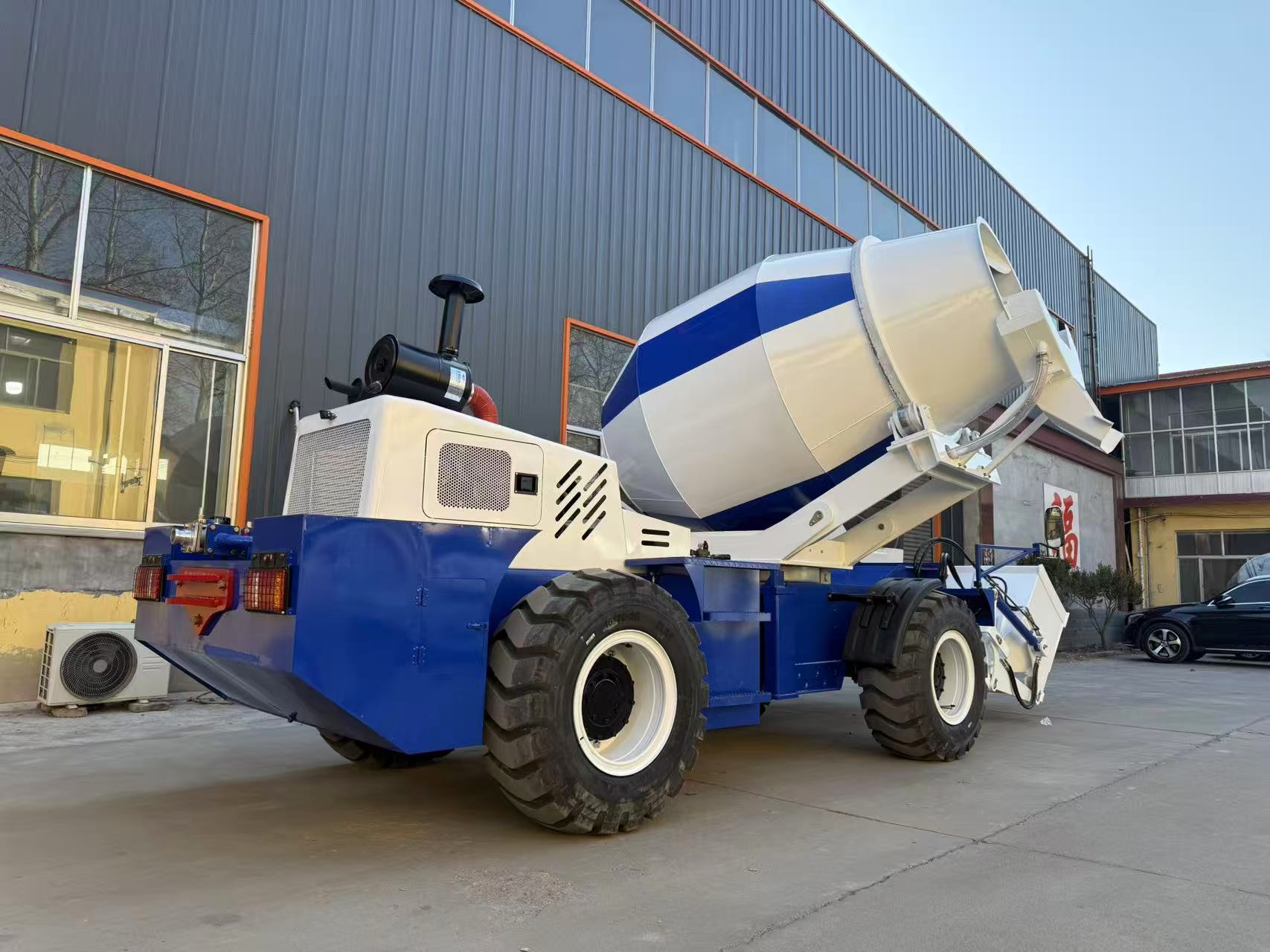

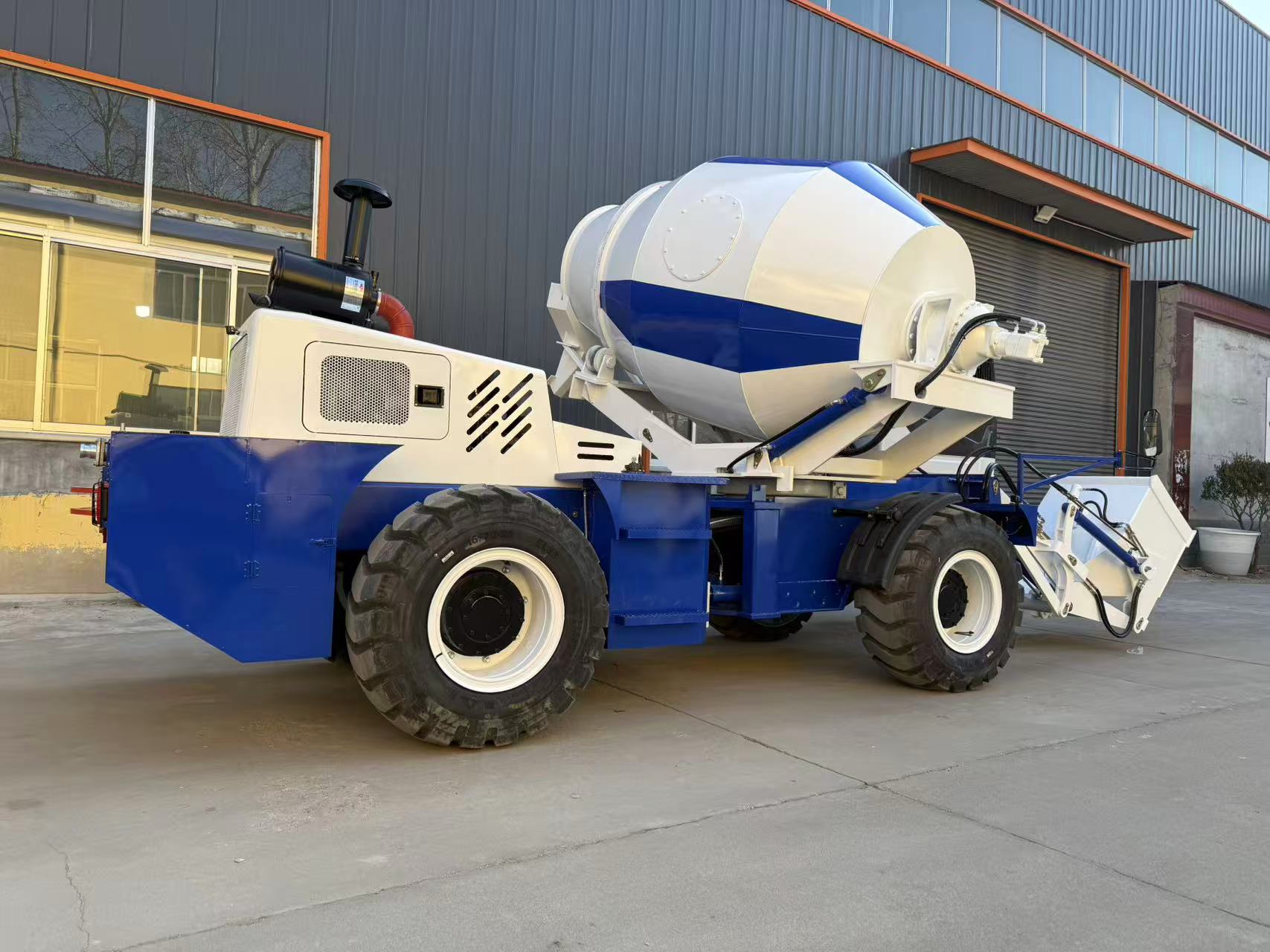

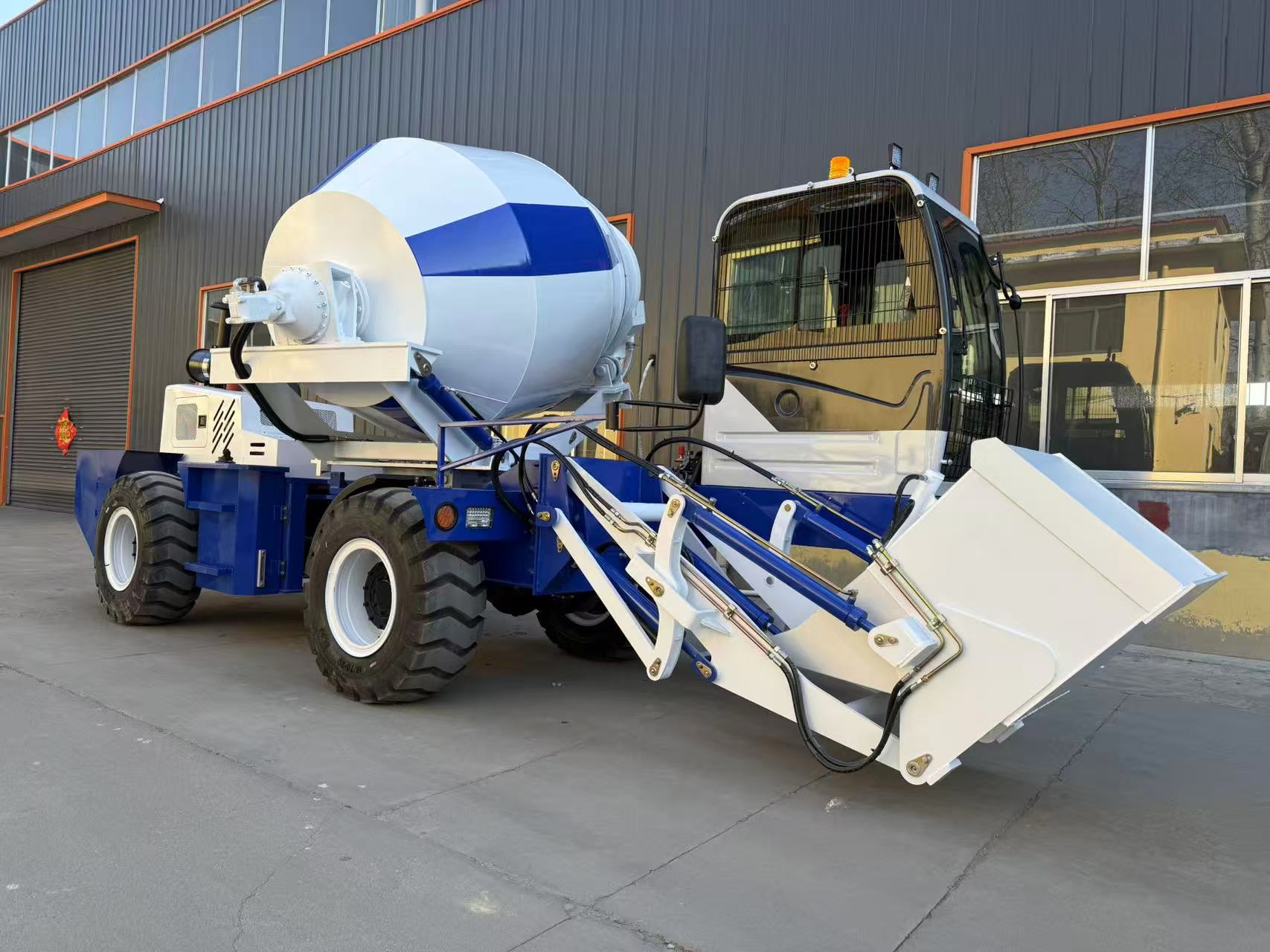

Self-Loading Concrete Mixer
A self-loading concrete mixer with 4.5 m³ drum capacity, 2.5 m³ verified concrete yield per batch and 270° discharge.
The RB2500 has a verified 4.5 m³ drum capacity and 2.5 m³ concrete yield per batch. The supplier sheet lists up to four batches per hour and 270° discharge.
It uses hydraulic four-wheel drive, a 76 kW Yunnei YN38GBZ water-cooled diesel engine and has a listed maximum speed of 35 km/h.
2.5 m³ of concrete per batch, separate from the 4.5 m³ drum capacity.
The source sheet lists 270° discharge.
76 kW YN38GBZ diesel engine with hydraulic four-wheel drive.
Listed maximum speed of 35 km/h with 16/70-20 tyres.
| Parameter | RB2500 |
|---|---|
| Concrete Yield per Batch | 2.5 m³ |
| Drum Geometric Capacity | 4.5 m³ |
| Listed Batch Rate | Up to 4 batches/hour |
| Discharge Rotation | 270° |
| Engine Model | Yunnei YN38GBZ |
| Engine Type | Diesel, water-cooled |
| Rated Power | 76 kW |
| Drive Type | Hydraulic four-wheel drive |
| Maximum Speed | 35 km/h |
| Tyres | 16/70-20 |
| Operating Weight | 6,900 kg |
| Overall Dimensions (L × W × H) | 6.8 × 2.3 × 2.9 m |
Final specifications for the selected configuration are issued with the quotation.
Application scenarios selected for this model.
The verified concrete yield is 2.5 m³ per batch.
It is the drum geometric capacity. It must not be confused with the 2.5 m³ concrete yield per batch.
The supplied specification lists 270° discharge rotation.
It is specified with a 76 kW Yunnei YN38GBZ water-cooled diesel engine and hydraulic four-wheel drive.
The source sheet lists up to four batches per hour. Real output varies with material layout, water supply, travel distance and discharge time.
The listed overall dimensions are 6.8 × 2.3 × 2.9 m, with an operating weight of 6,900 kg.
