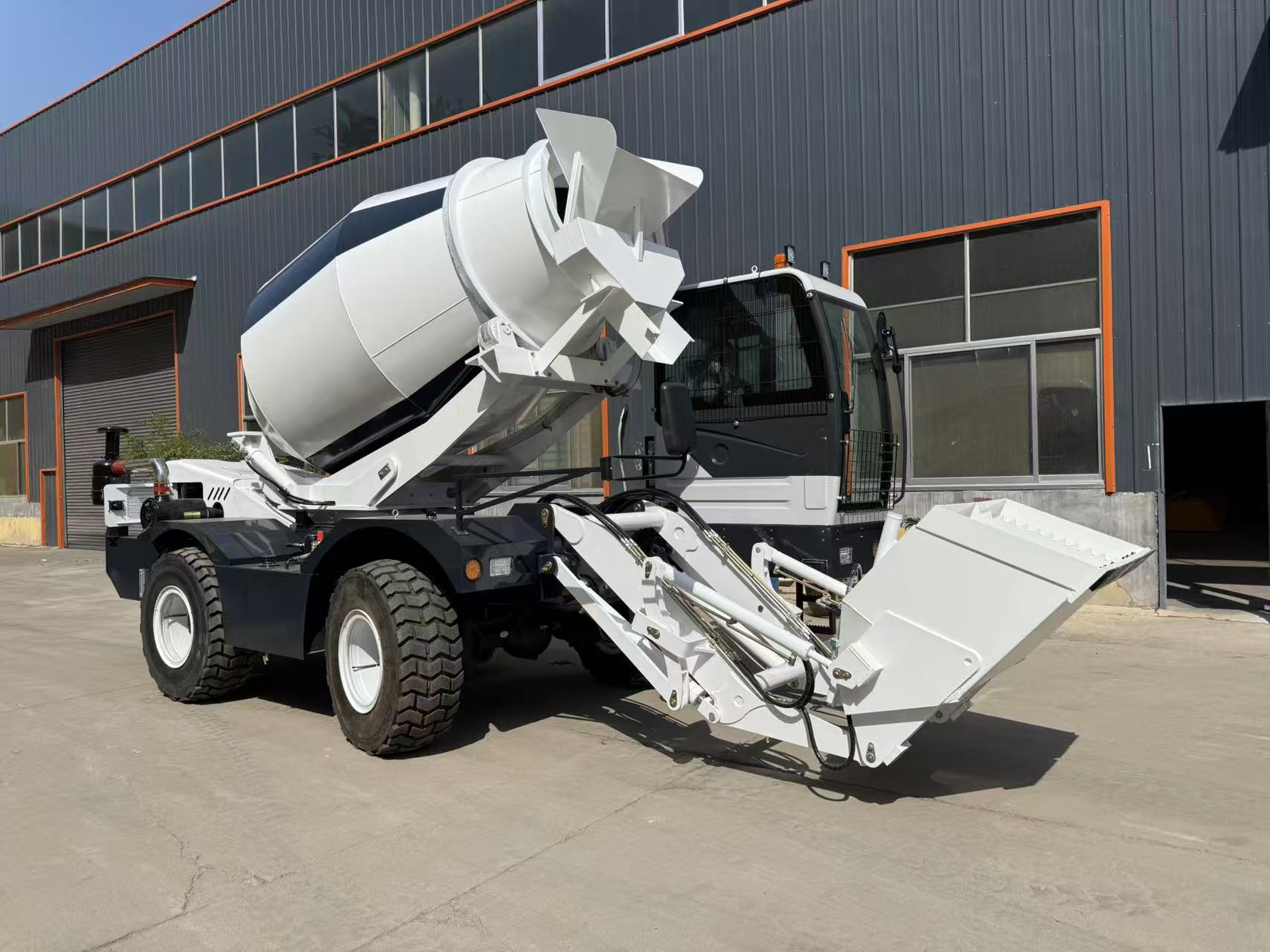

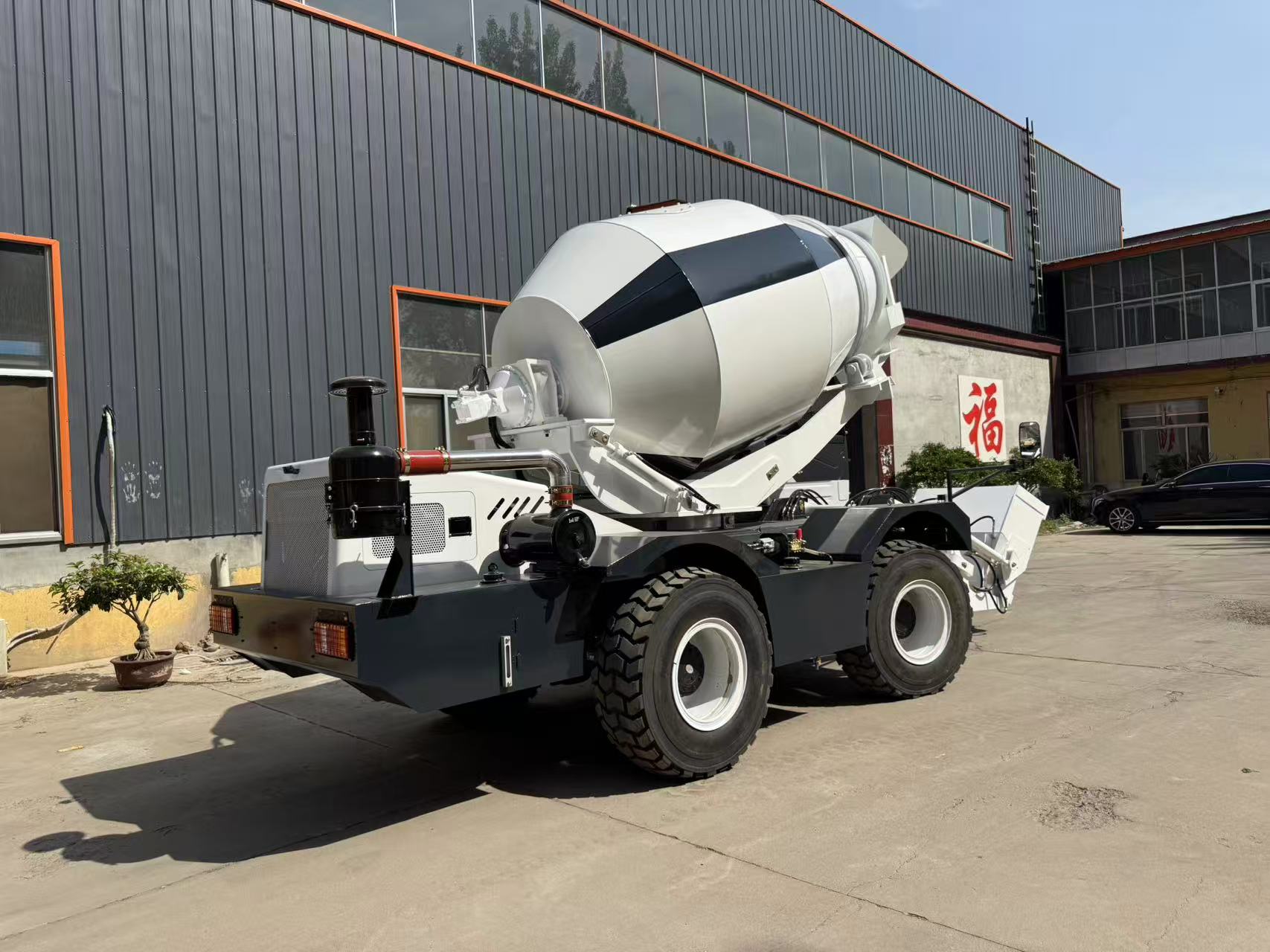

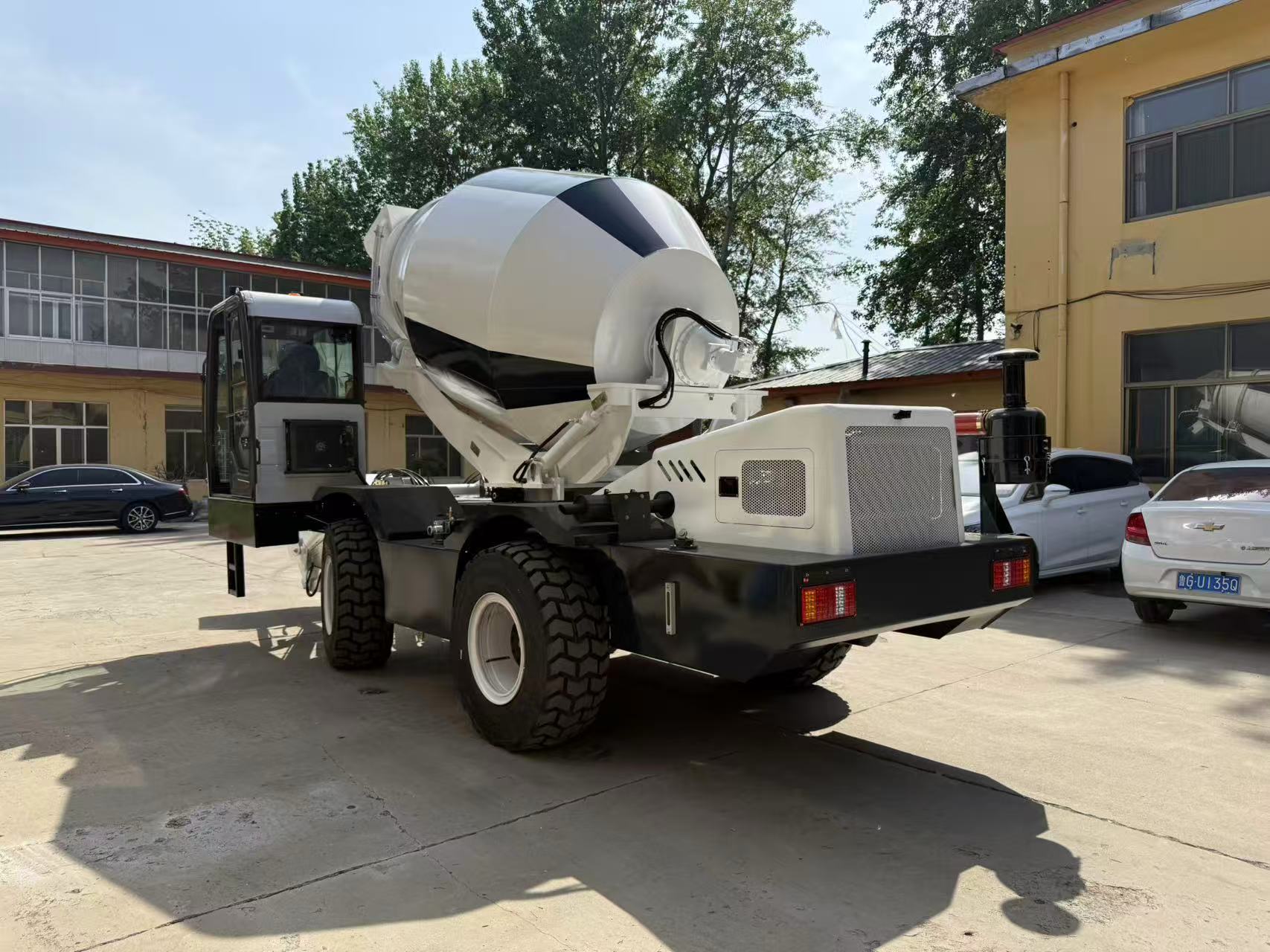

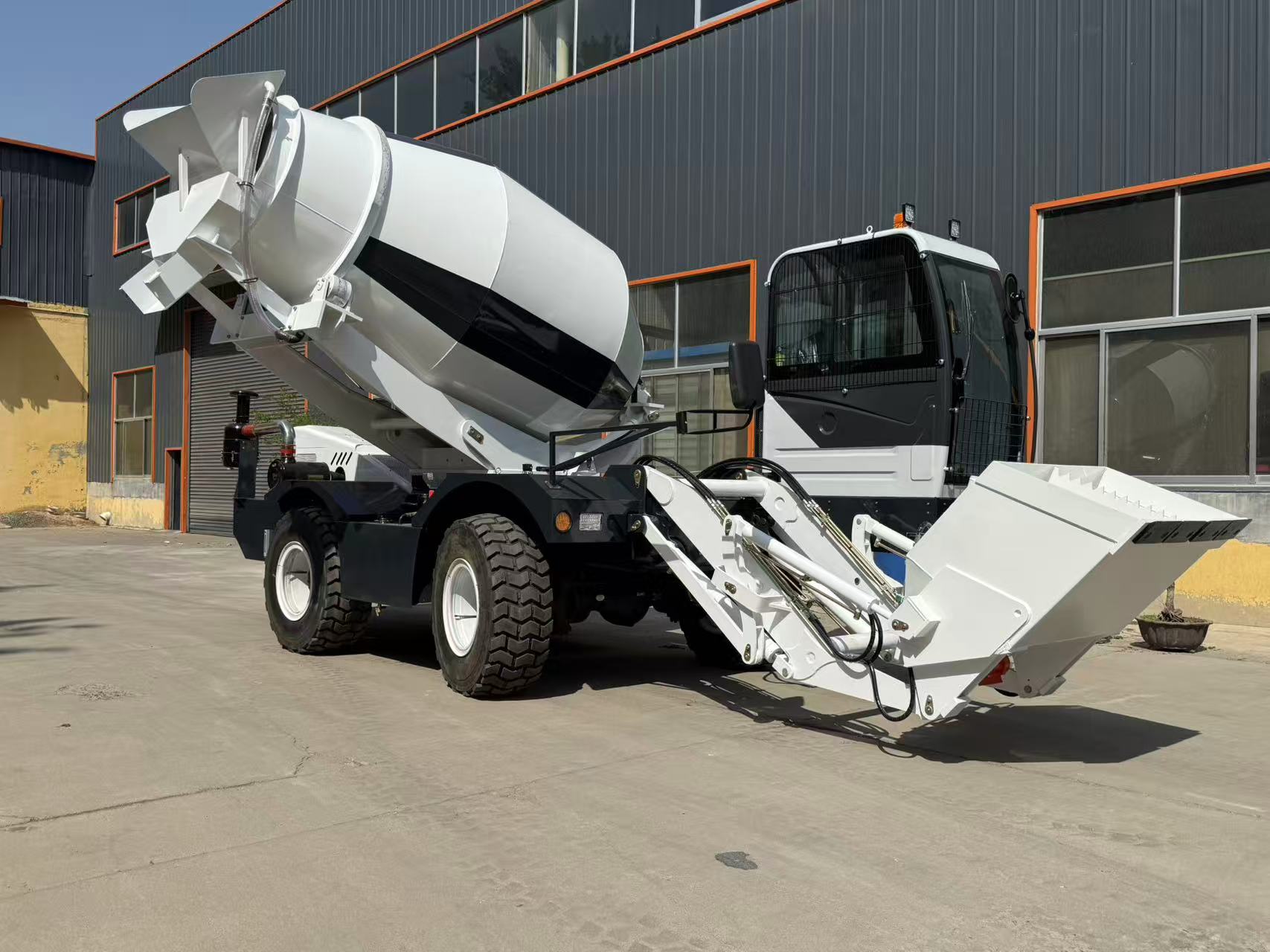

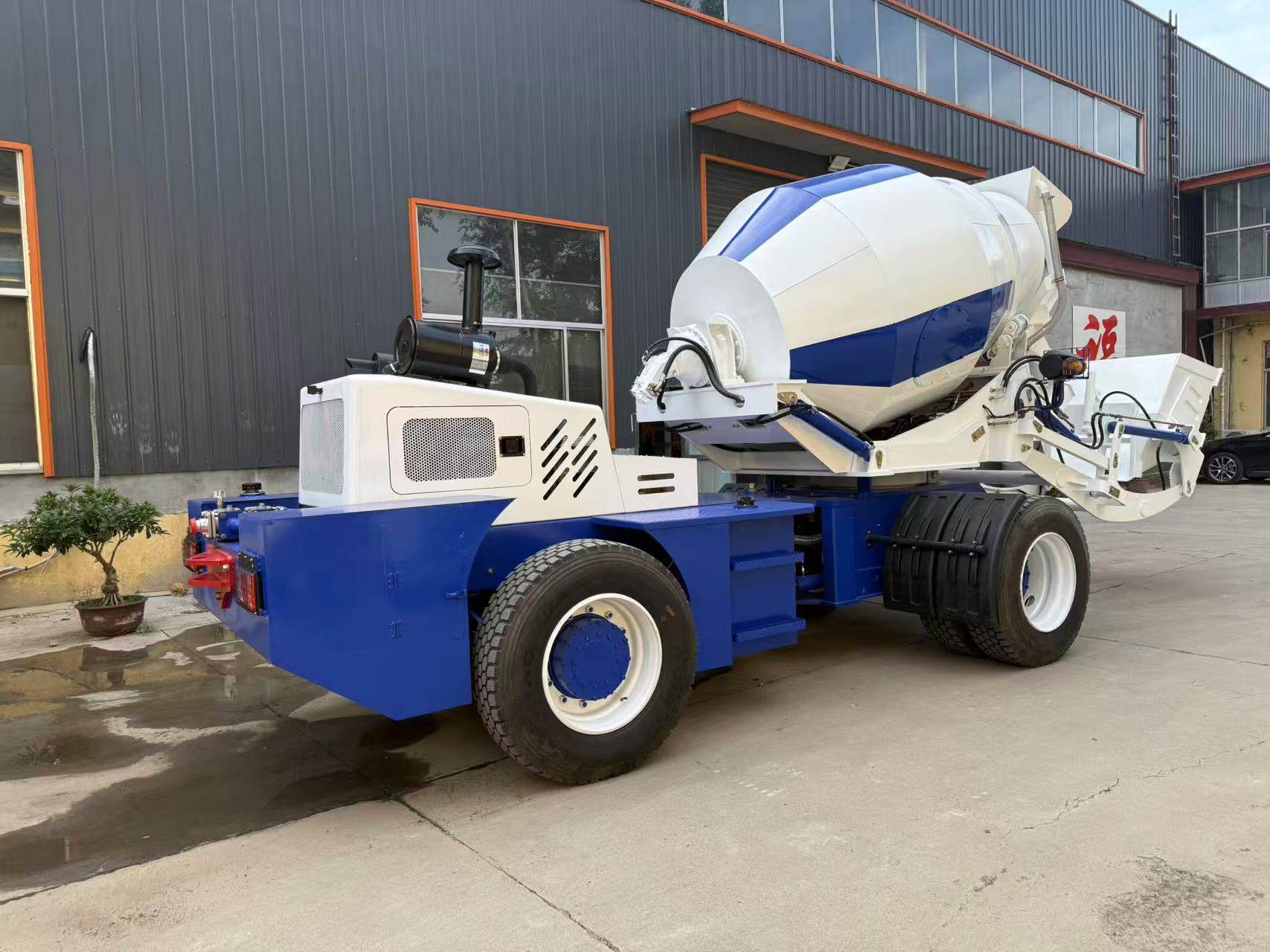

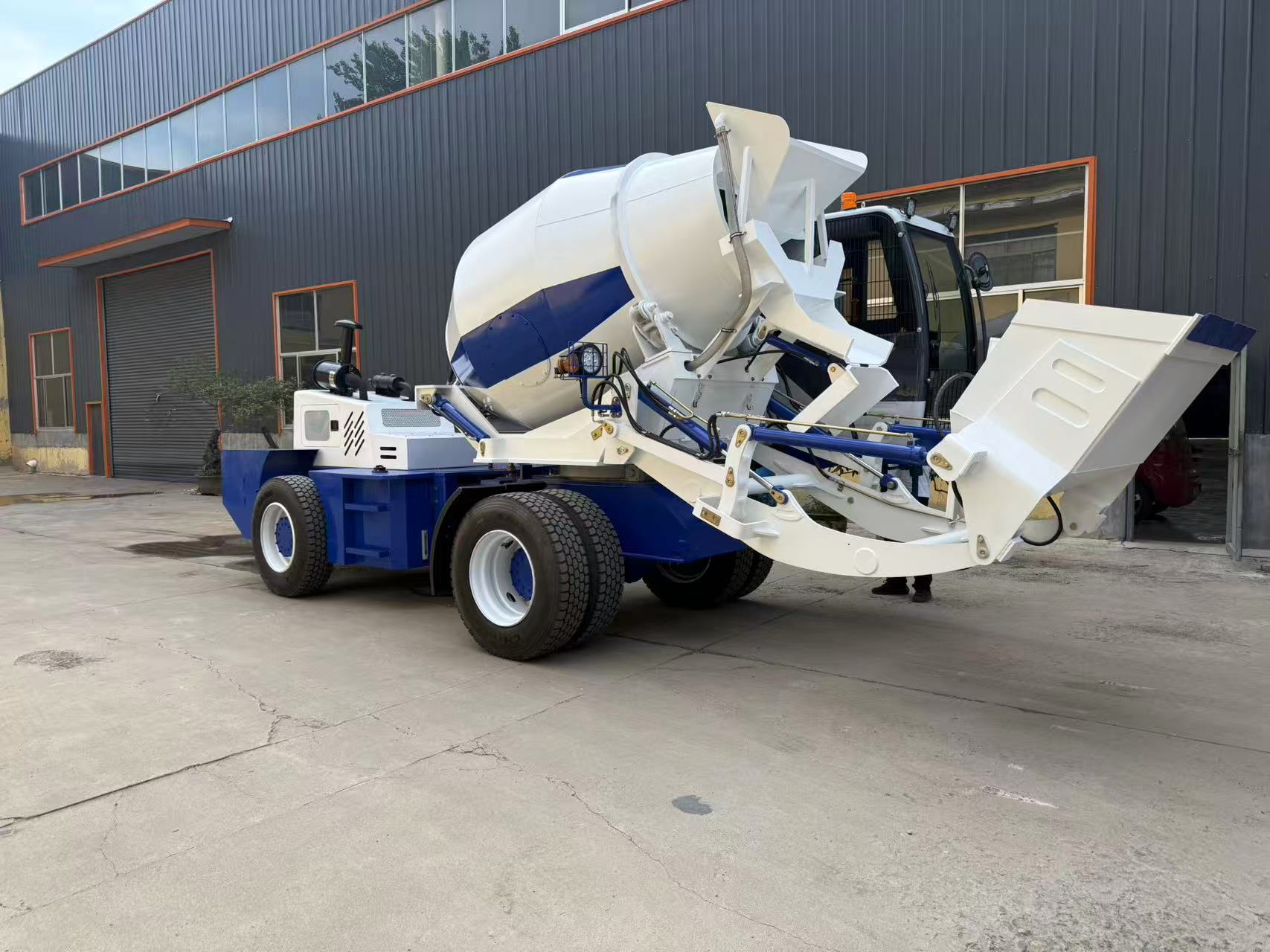

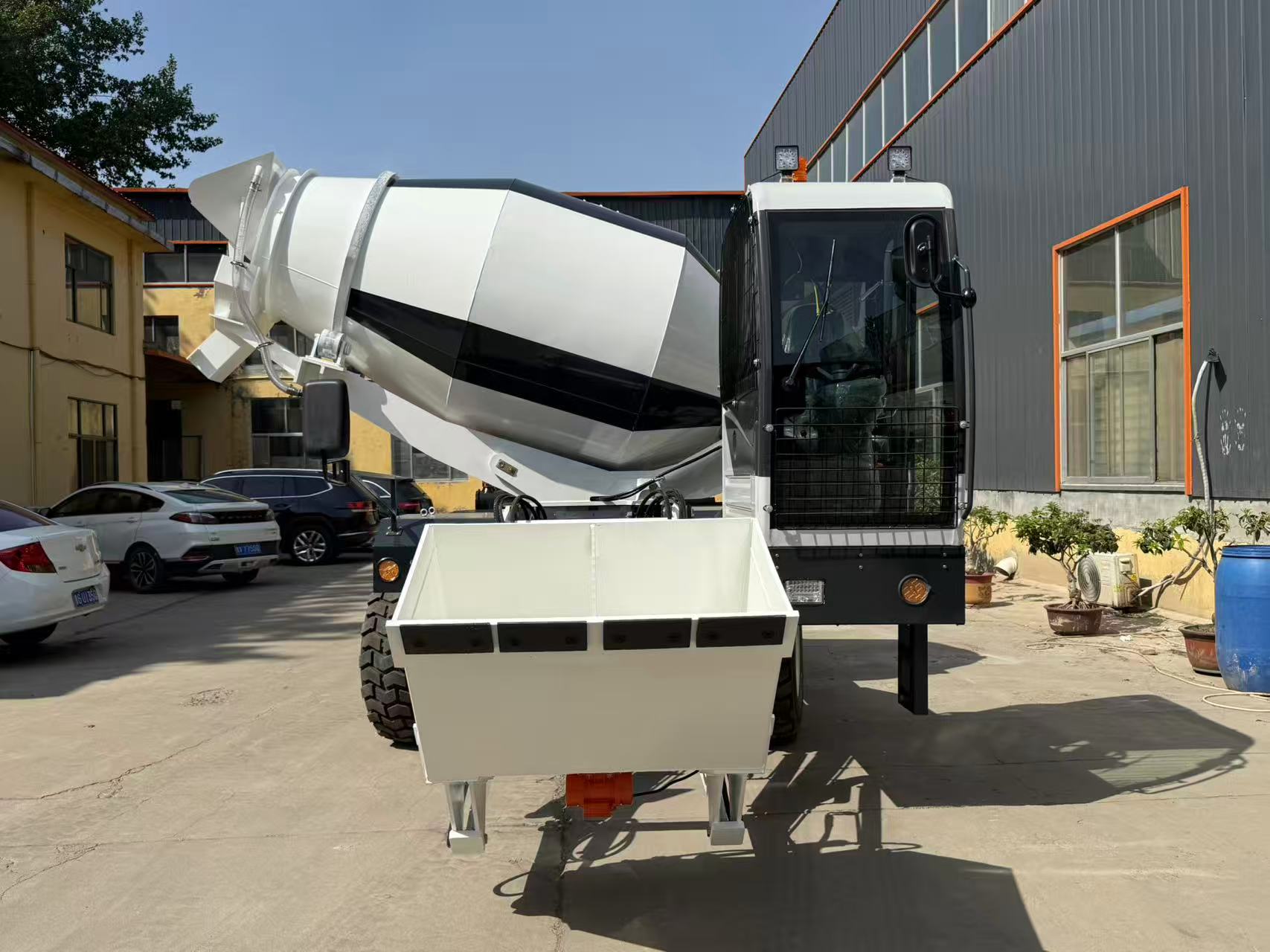

RB4000
Self-loading concrete mixer with actual concrete output of 4 m³ per batch. Load, mix and discharge with one machine.
01 / 09
RAY BRIDGE / Self-loading concrete mixers
RB4000
Self-loading concrete mixerSelf-loading concrete mixer with actual concrete output of 4 m³ per batch. Load, mix and discharge with one machine.
- Output per batch
- 4 m³
- Engine power
- 92 kW
- Machine weight
- 8300 kg
Discover the model
Self-loading concrete mixer
Drum and concrete
The specification sheet states a 4 m³ drum. Drum volume and the concrete produced per batch are different figures.
Machine engine
Engine: Yunnei YN48GBZ with 92 kW.
Before requesting a quote
Machine weight: 8300 kg. See the full dimensions in the specifications table.
Specifications
Technical specifications.
Drum and output
| Drum capacity | 4 m³ |
|---|---|
| Concrete output per batch | 4 m³ |
Machine and engine
| Machine weight | 8300 kg |
|---|---|
| Engine | Yunnei YN48GBZ |
| Engine power | 92 kW |
| Dimensions (length × width × height) | 7700 × 2580 × 3450 mm |
Documentation
Information, at hand.
Equipment
Other models in the range.
Self-loading concrete mixers
RB1600
- Output per batch
- 1.6 m³
- Engine power
- 58 kW
- Machine weight
- 5200 kg
Self-loading concrete mixers
RB2500
- Output per batch
- 2.5 m³
- Engine power
- 76 kW
- Machine weight
- 6900 kg
