Backhoe Loader
A 9,300 kg 4WD backhoe loader with a 1.2 m³ loader bucket, 2,500 kg rated load and 3,820 mm maximum digging depth.

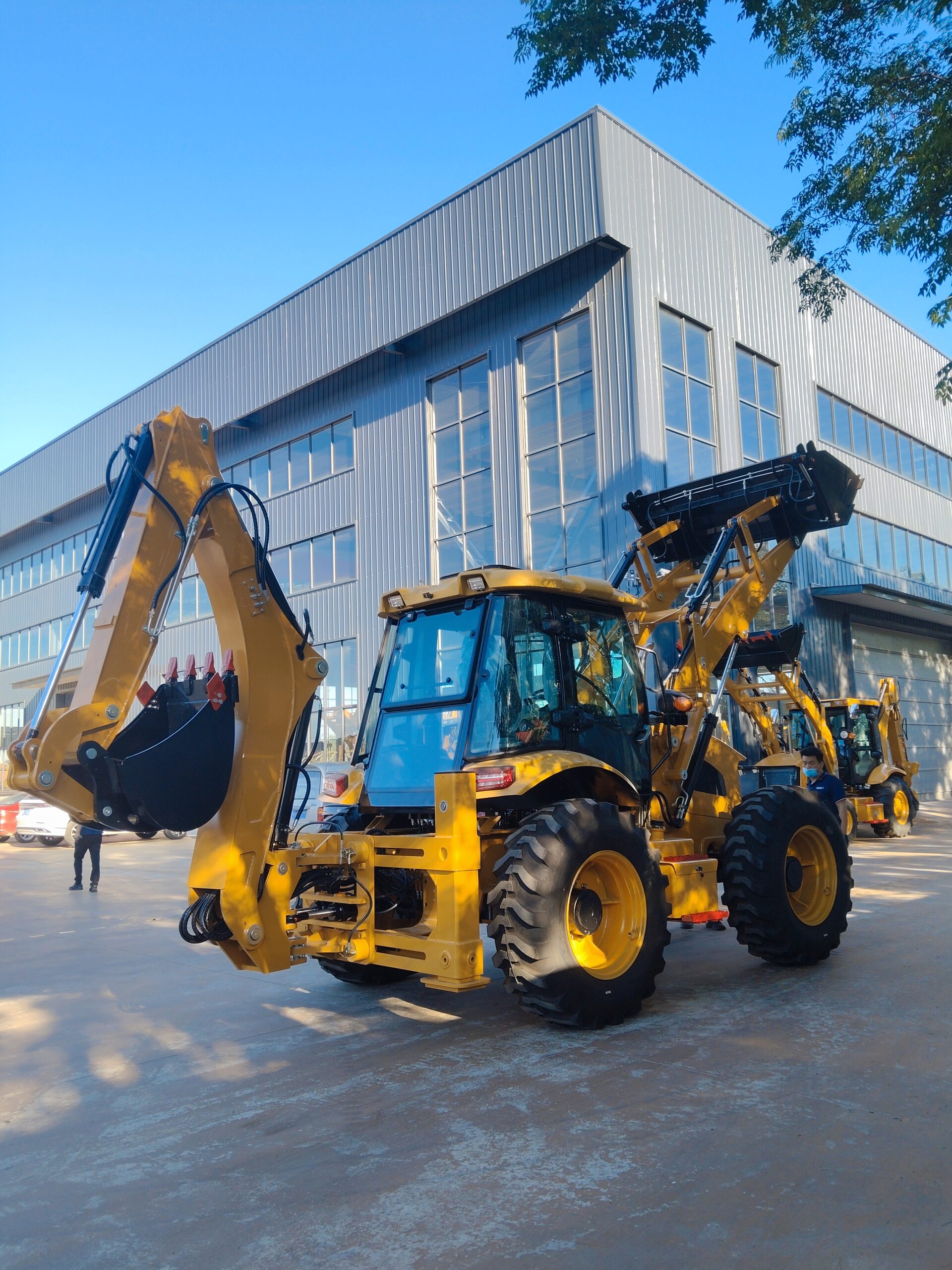

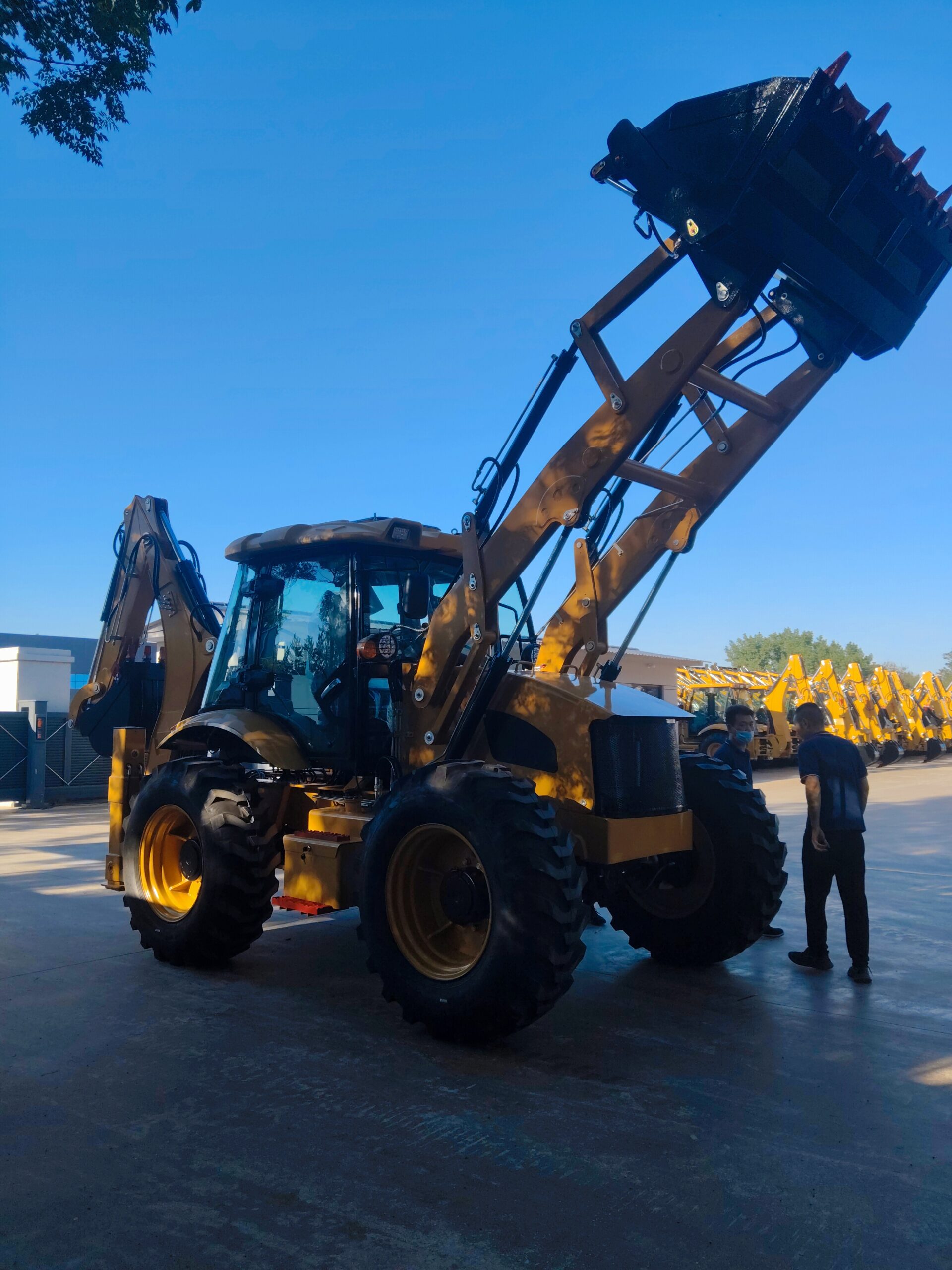

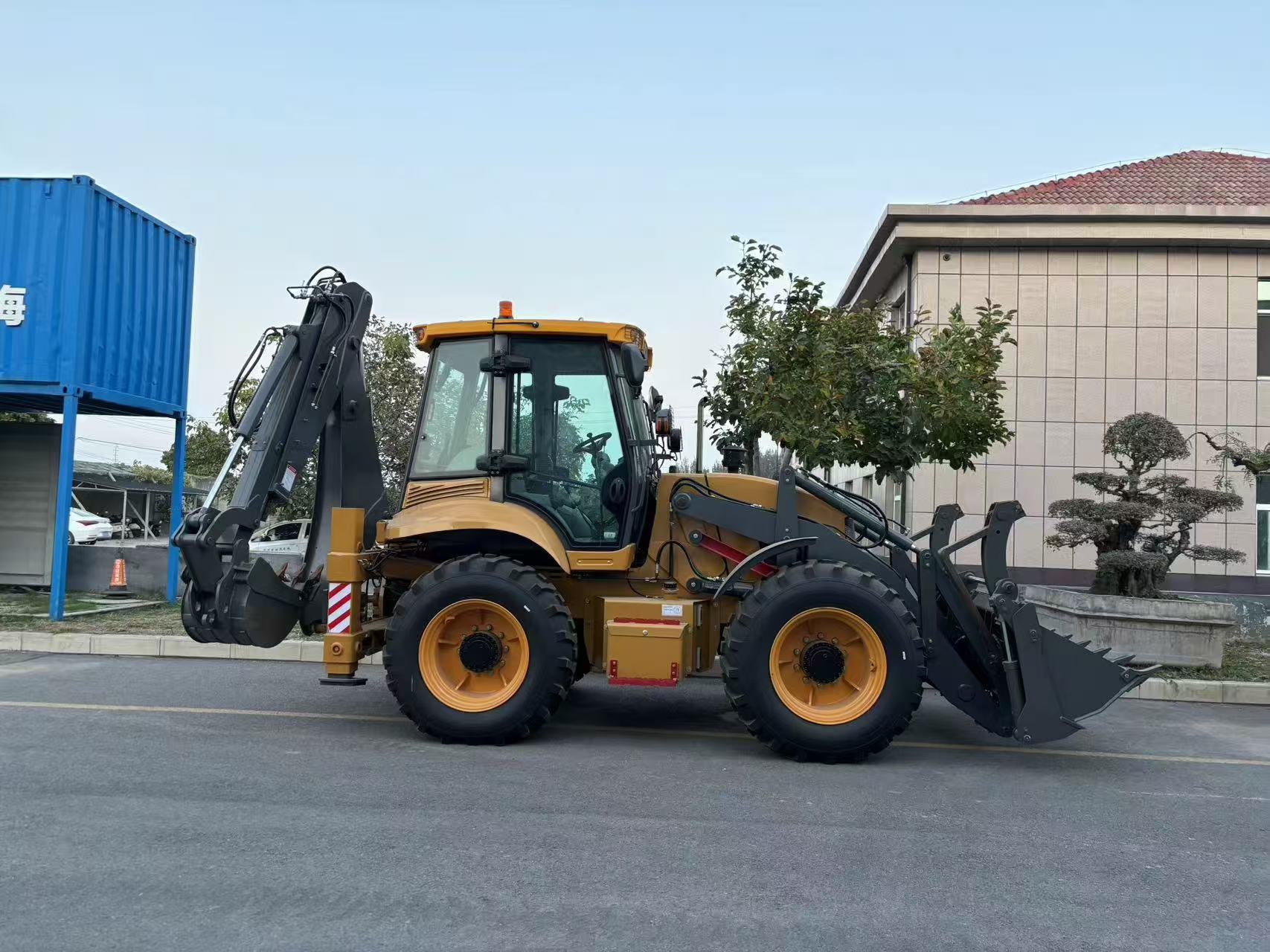

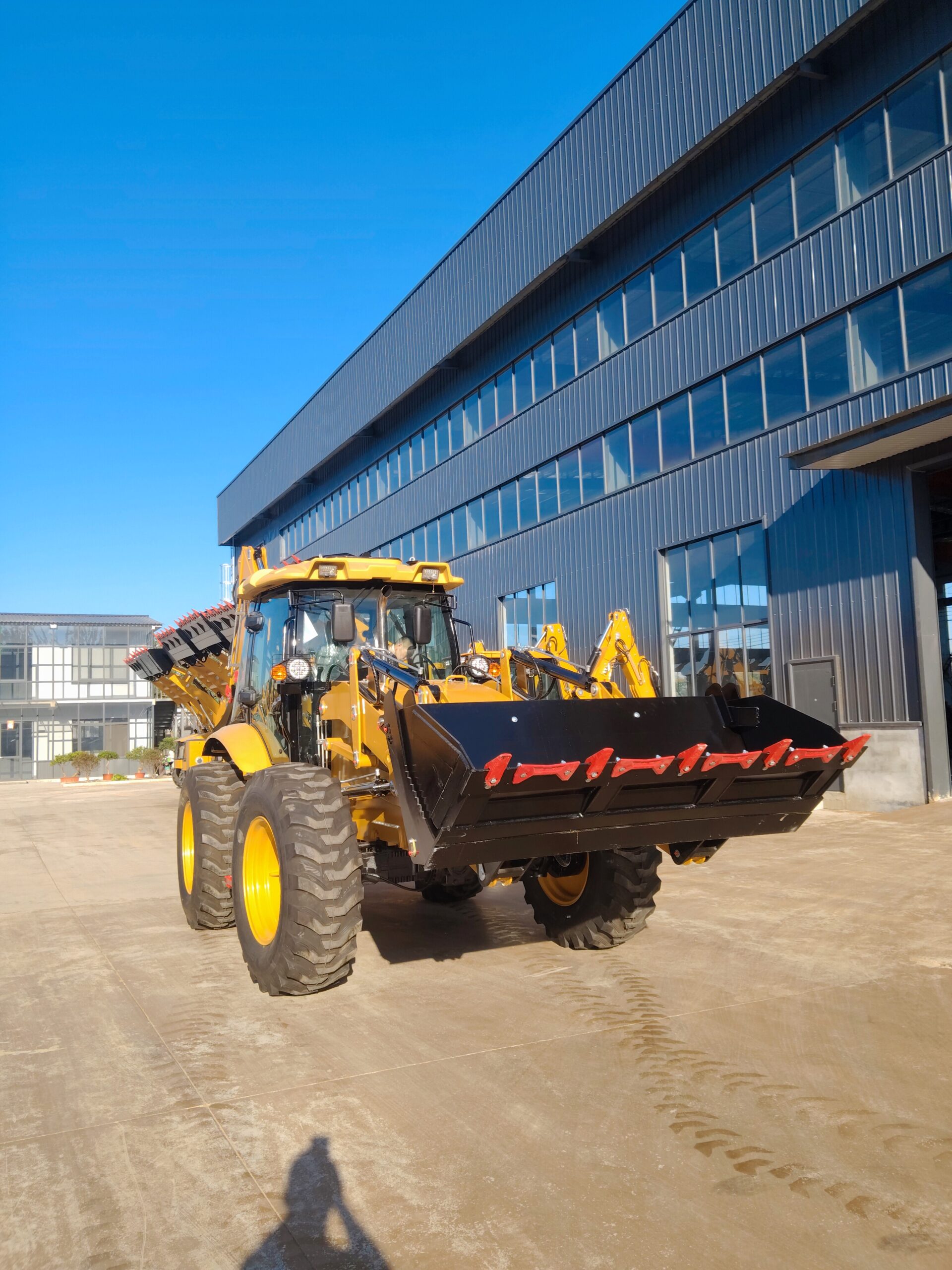

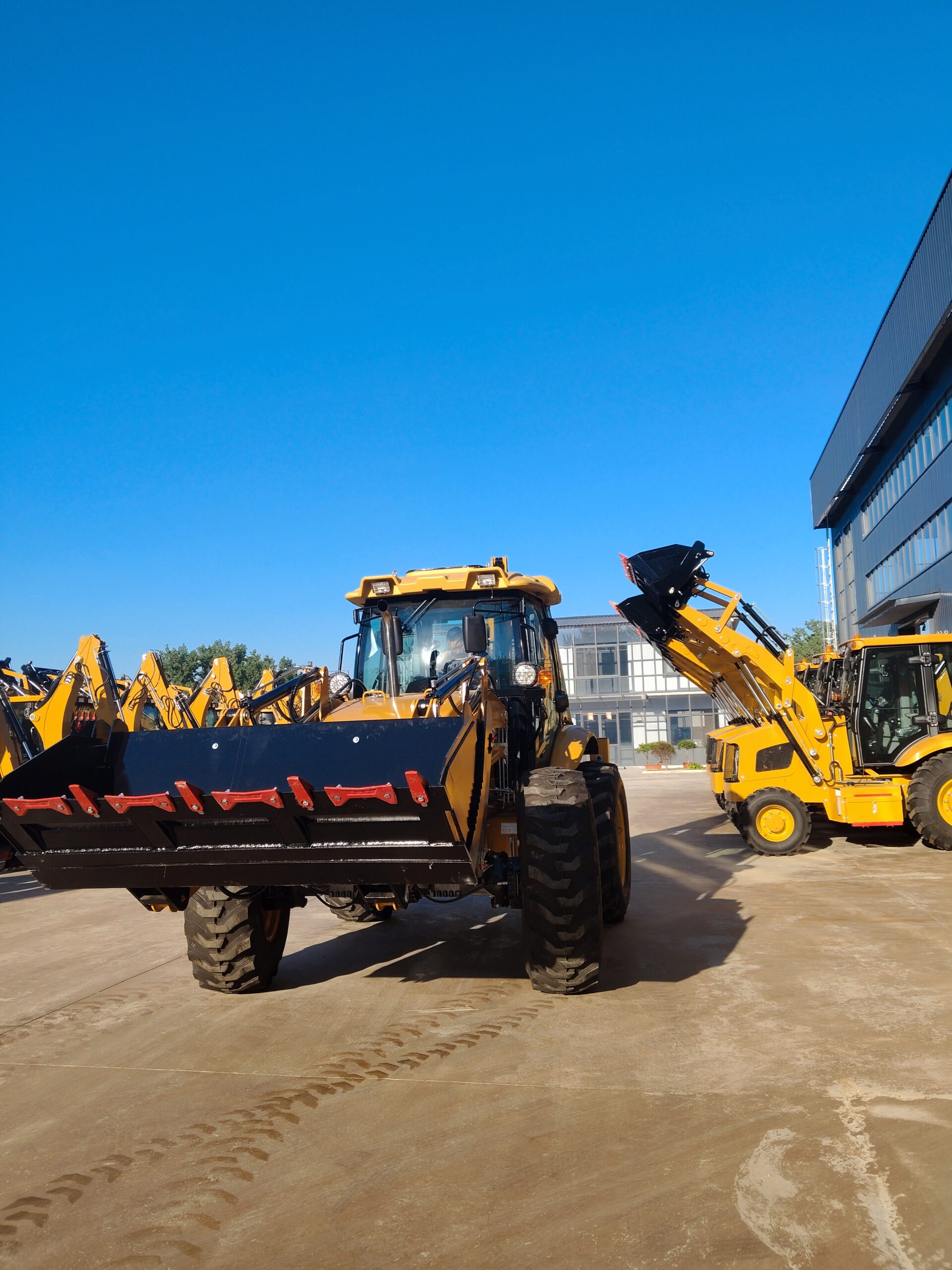

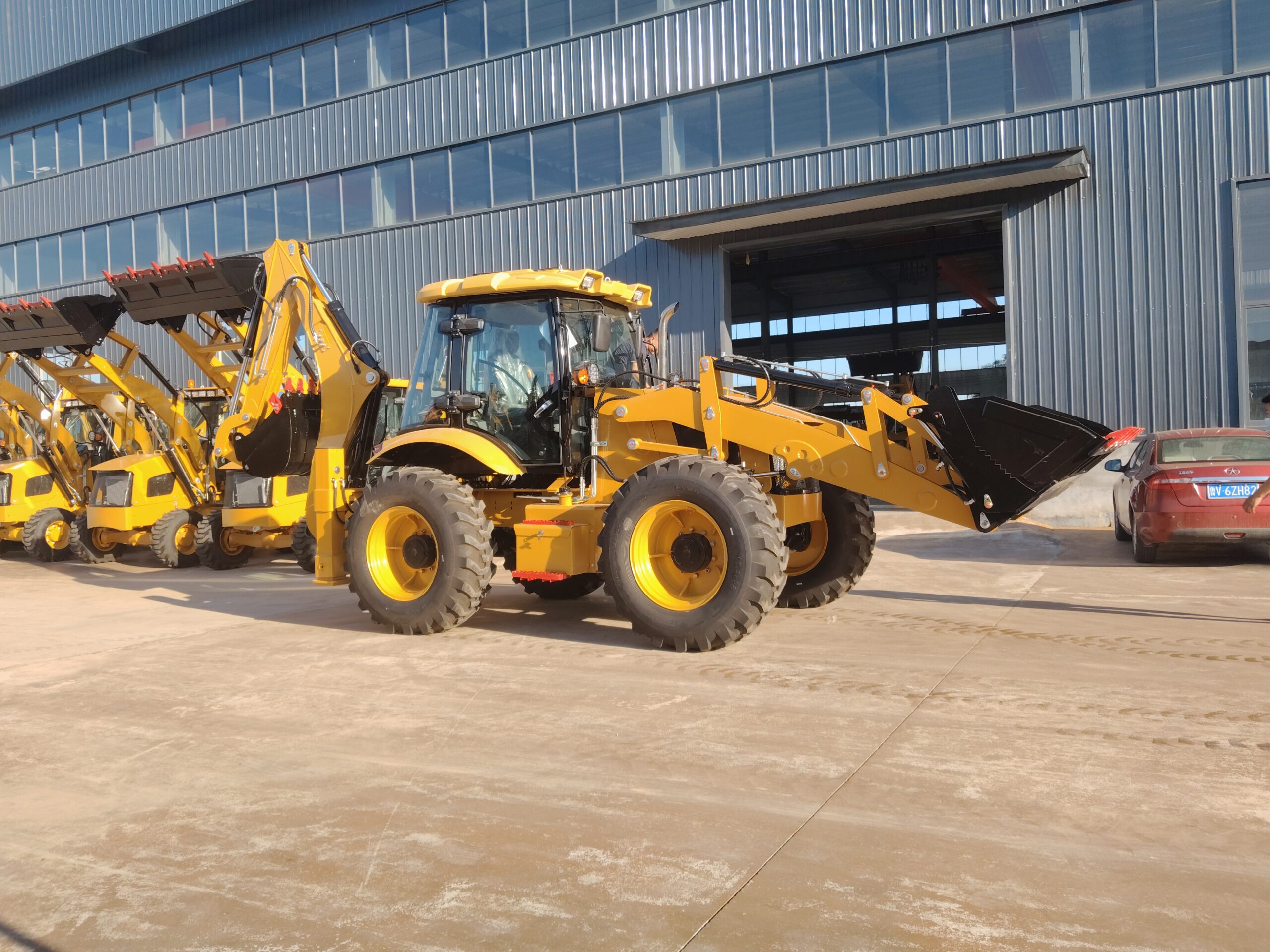

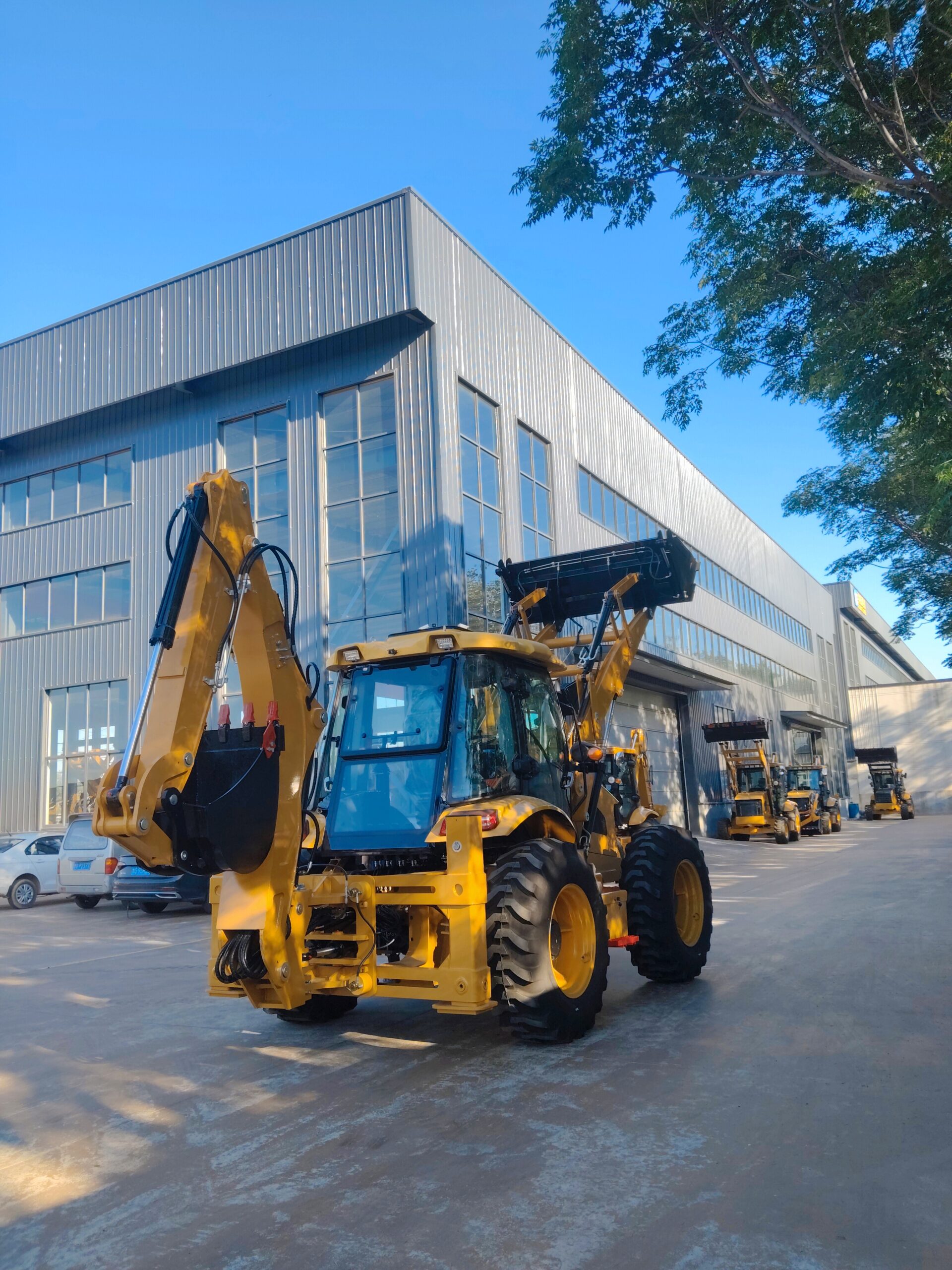

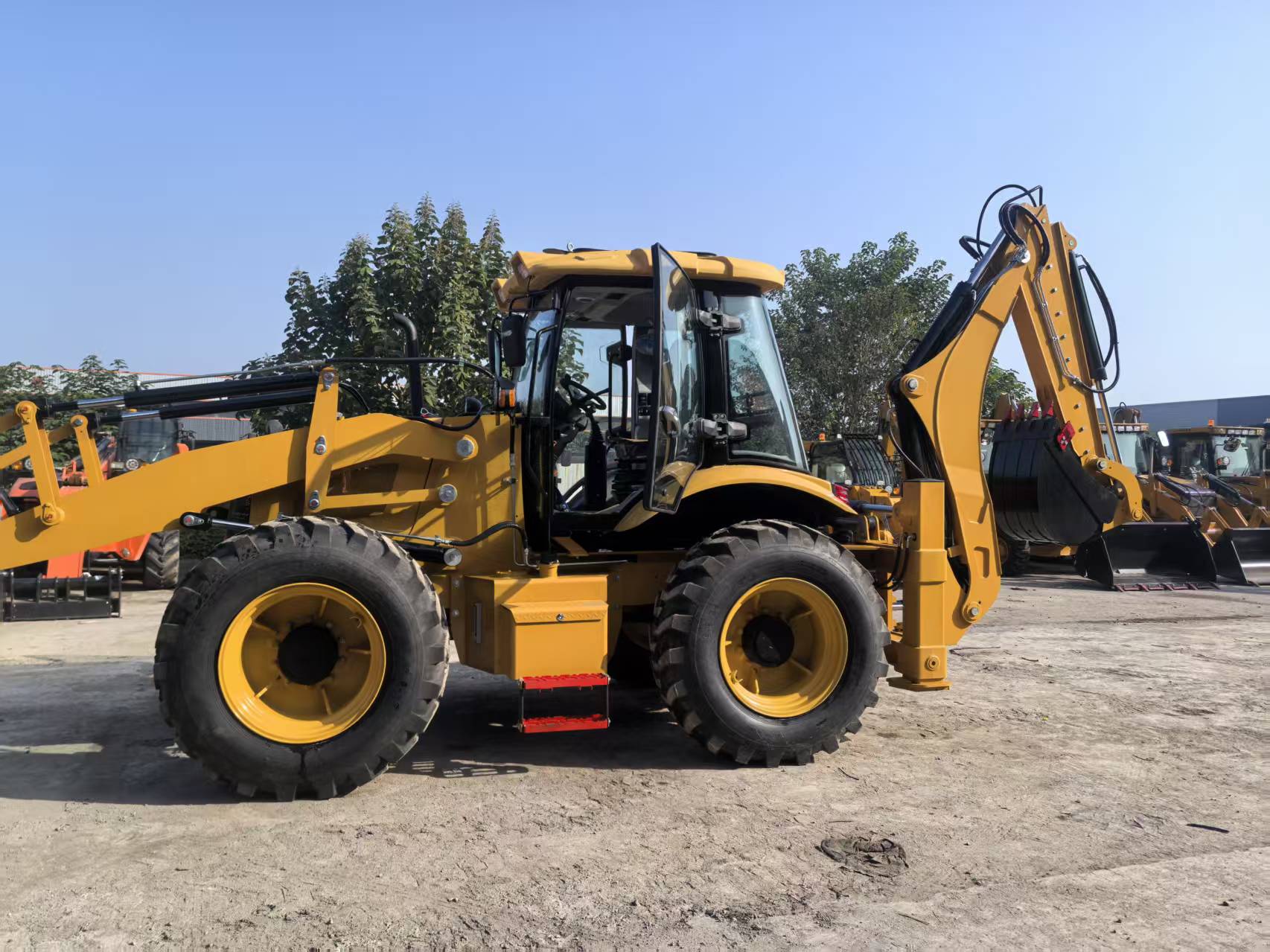

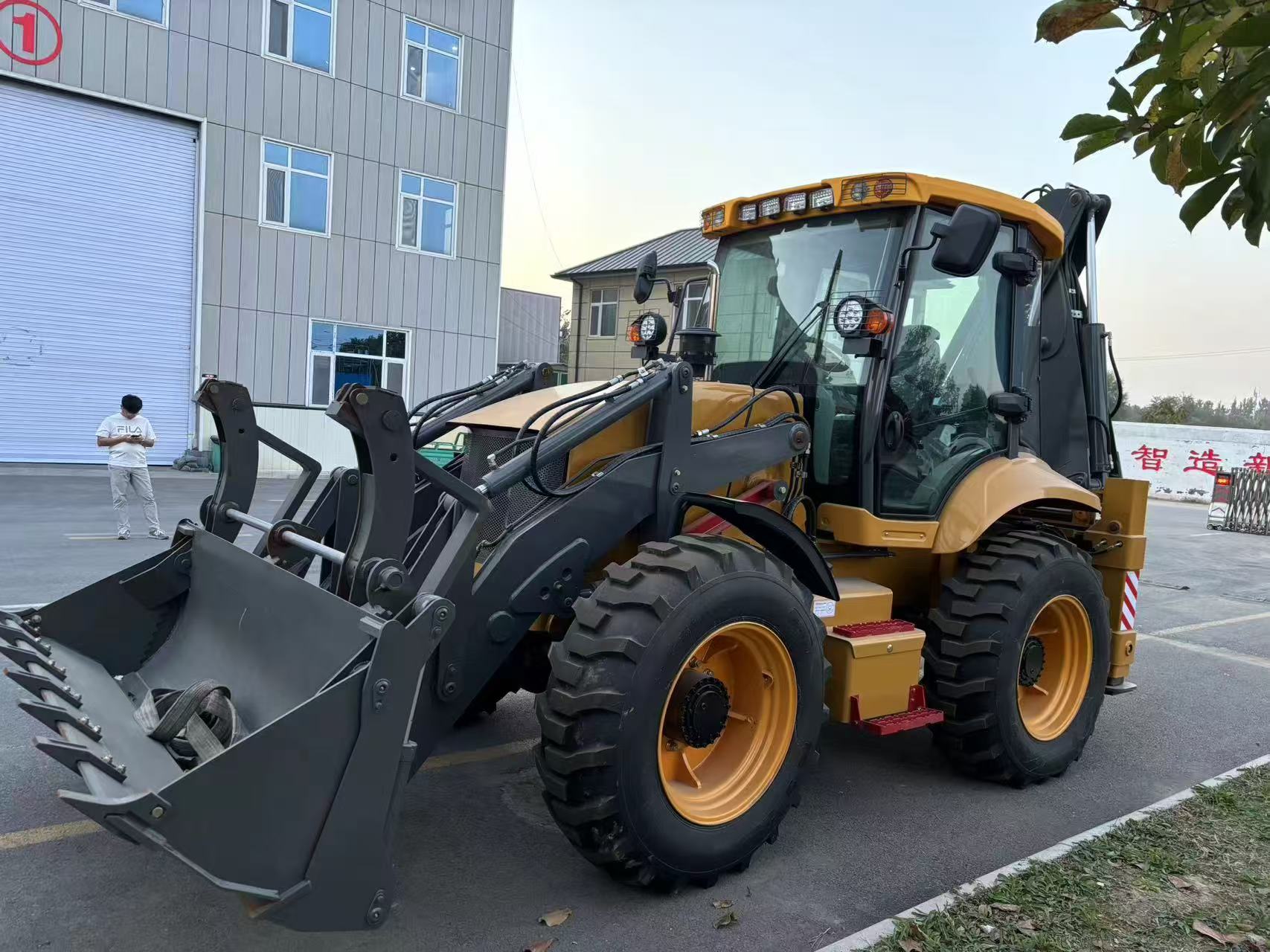

The RB388 Luxury is a four-wheel-drive backhoe loader with a verified operating weight of 9,300 kg. It uses the YCD4J22T-115 engine with 85 kW rated power.
The loader end is specified with a 1.2 m³ bucket, 2,500 kg rated load and 3,050 ± 50 mm dumping height. The rear 0.3 m³ bucket has a listed maximum digging depth of 3,820 ± 20 mm.
YCD4J22T-115 engine with 85 kW rated power.
1.2 m³ loader bucket and 2,500 kg rated load.
0.3 m³ backhoe bucket with 3,820 ± 20 mm maximum digging depth.
Four forward and four reverse gears, four-wheel drive and a listed maximum speed of 32 km/h.
| Parameter | RB388 Luxury |
|---|---|
| Operating Weight | 9,300 kg |
| Total Length | 6,400 ± 80 mm |
| Overall Width | 2,450 ± 20 mm |
| Bucket Width | 2,380 ± 20 mm |
| Cab Height | 3,250 ± 10 mm |
| Engine Model | YCD4J22T-115 |
| Rated Power | 85 kW |
| Drive Type | Four-wheel drive |
| Transmission | 4 forward / 4 reverse |
| Maximum Speed | 32 km/h |
| Tyres | 16.9-28 |
| Rated Load | 2,500 kg |
| Loader Bucket Capacity | 1.2 m³ |
| Dumping Height | 3,050 ± 50 mm |
| Backhoe Bucket Capacity | 0.3 m³ |
| Maximum Digging Depth | 3,820 ± 20 mm |
Final specifications for the selected configuration are issued with the quotation.
Application scenarios selected for this model.
The verified operating weight is 9,300 kg.
The supplied specification identifies the YCD4J22T-115 engine with 85 kW rated power.
The loader bucket capacity is 1.2 m³ and the rated load is 2,500 kg.
The verified maximum digging depth is 3,820 ± 20 mm with a 0.3 m³ backhoe bucket.
The specification lists four forward and four reverse gears and a maximum speed of 32 km/h.
Four-wheel drive is verified. Four-wheel steering is not stated in the supplied specification, so it is not claimed on this page.
