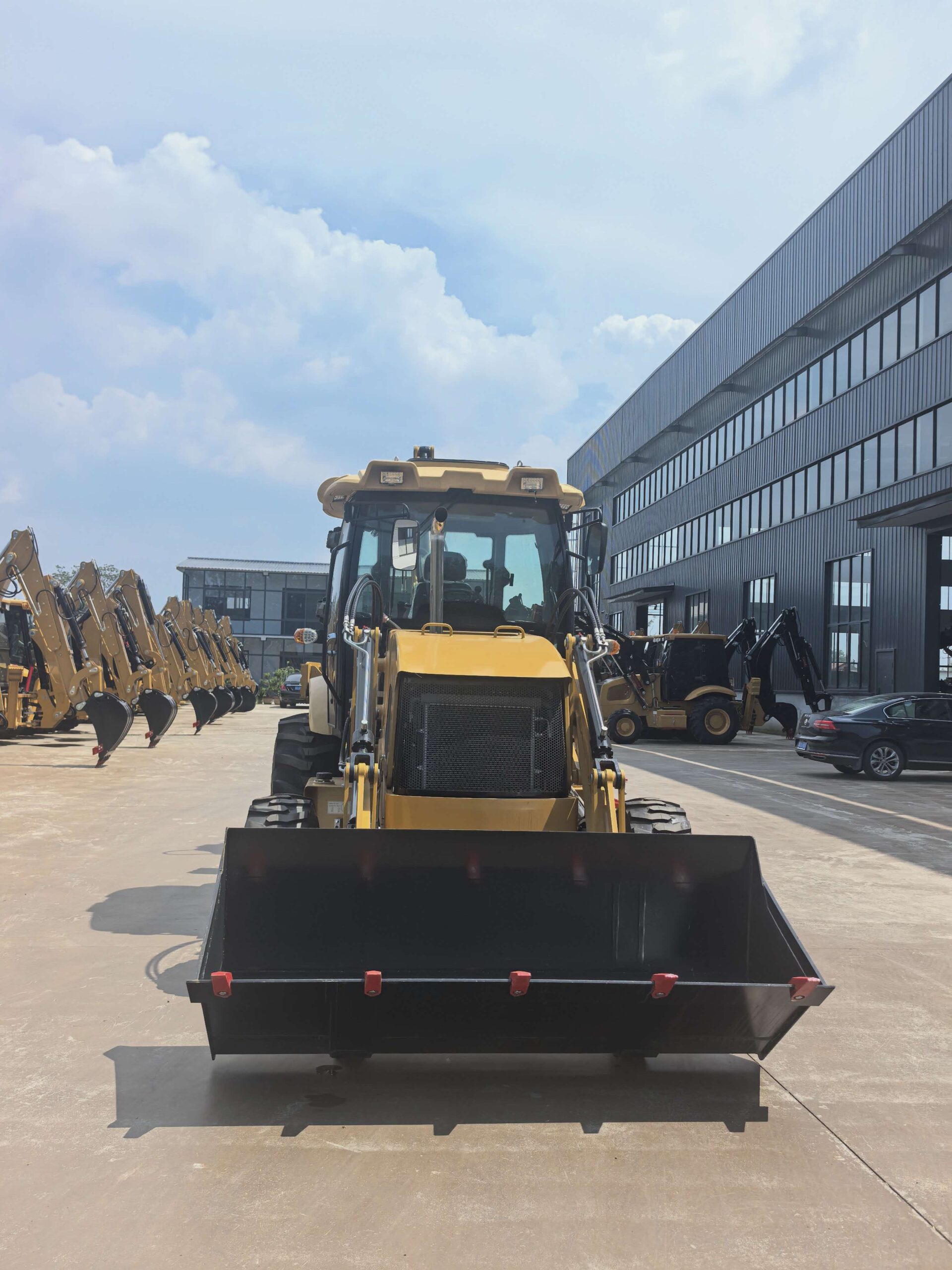

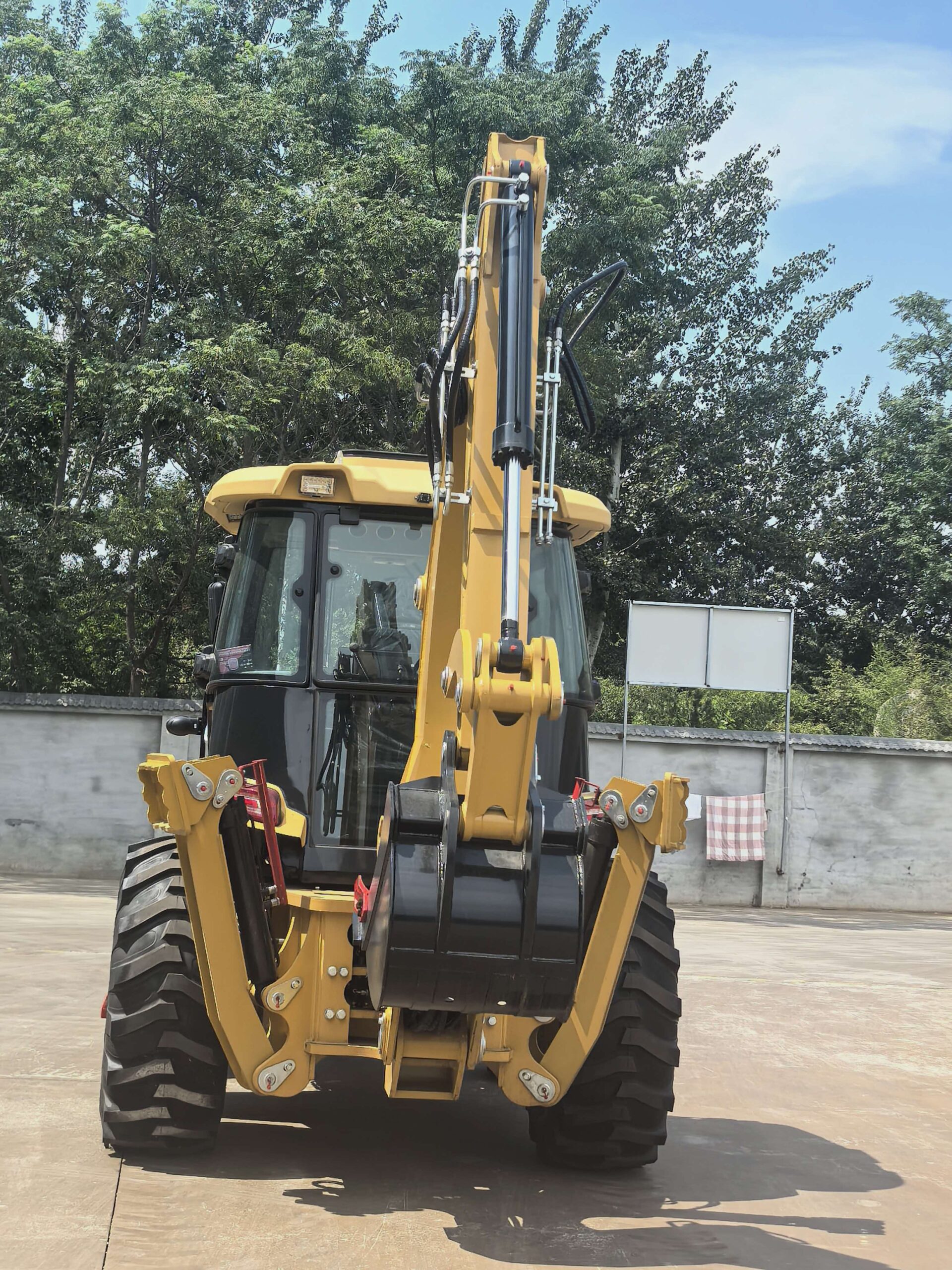

Backhoe Loader
A 4WD backhoe loader with a 1.5 m³ loader bucket, 2,800 kg rated load and 4,100 mm standard maximum digging depth.

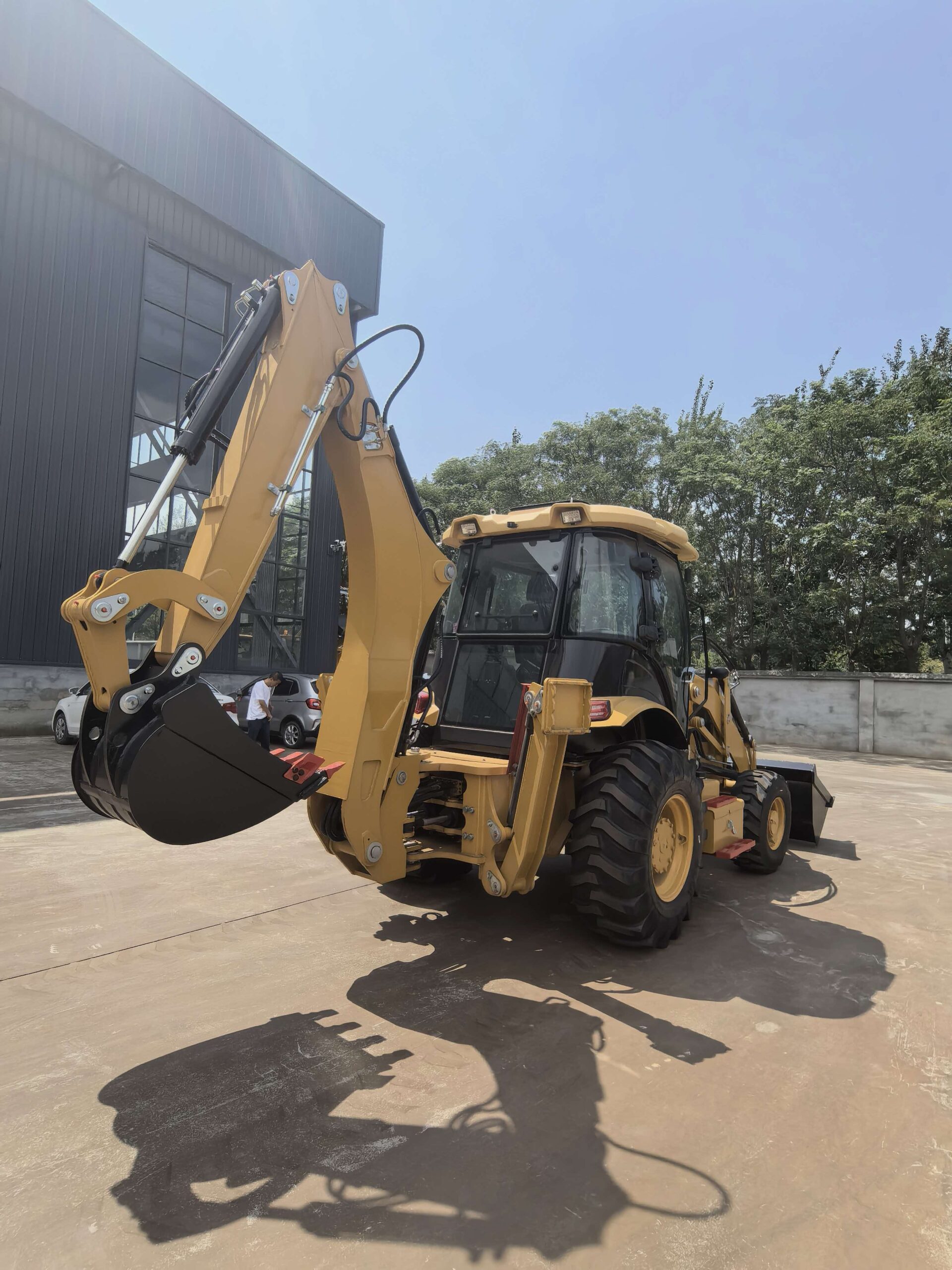

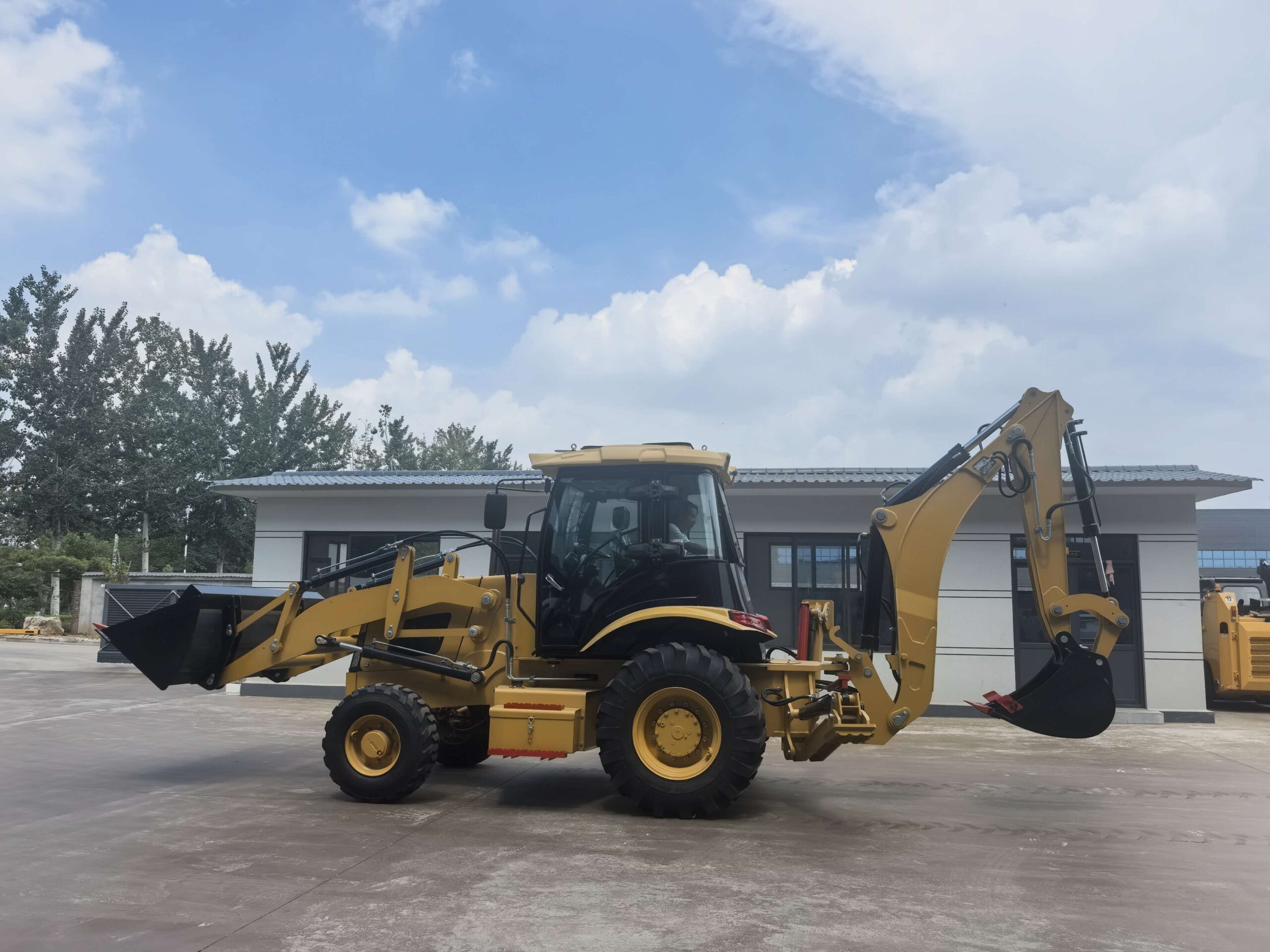

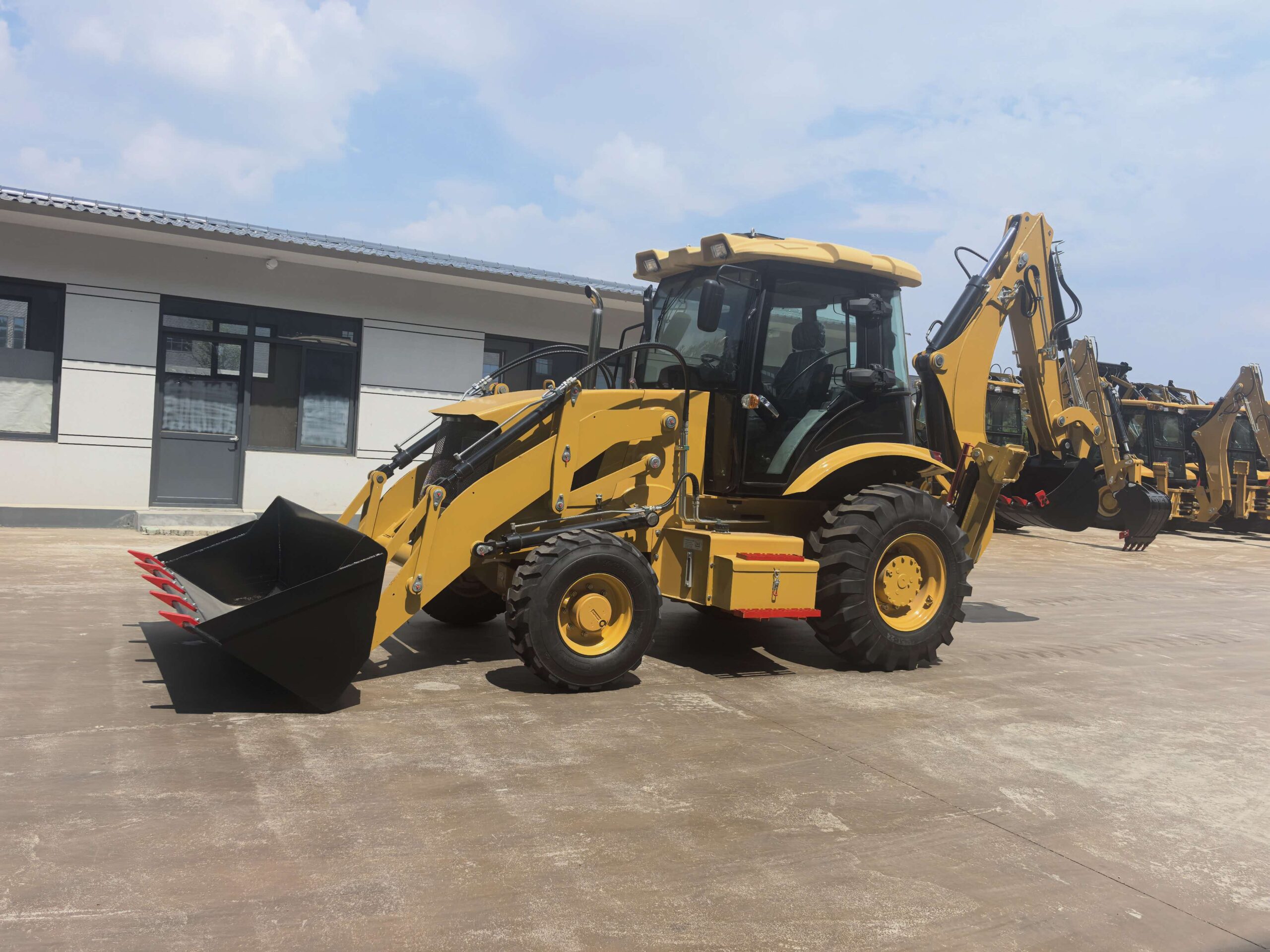

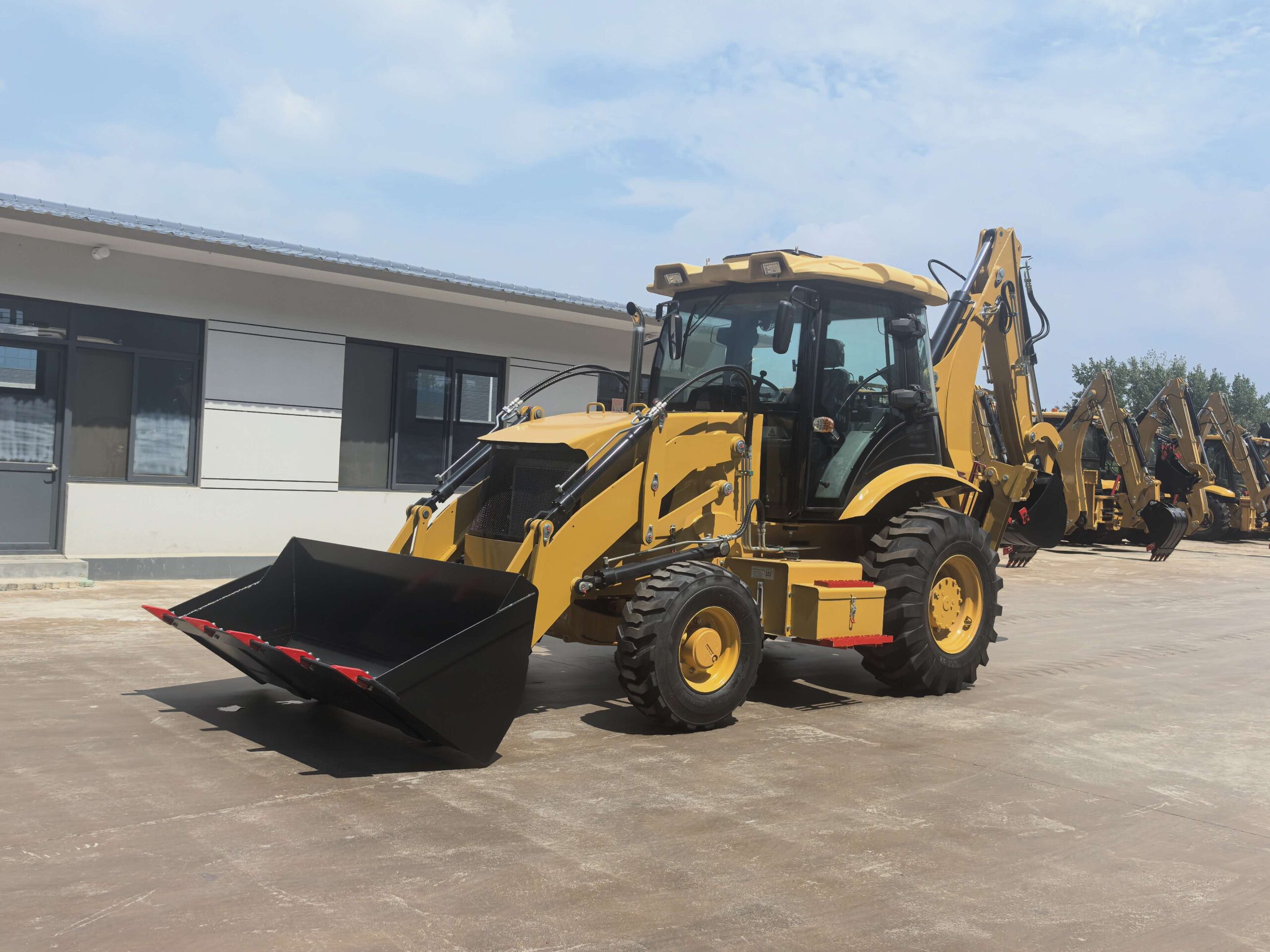

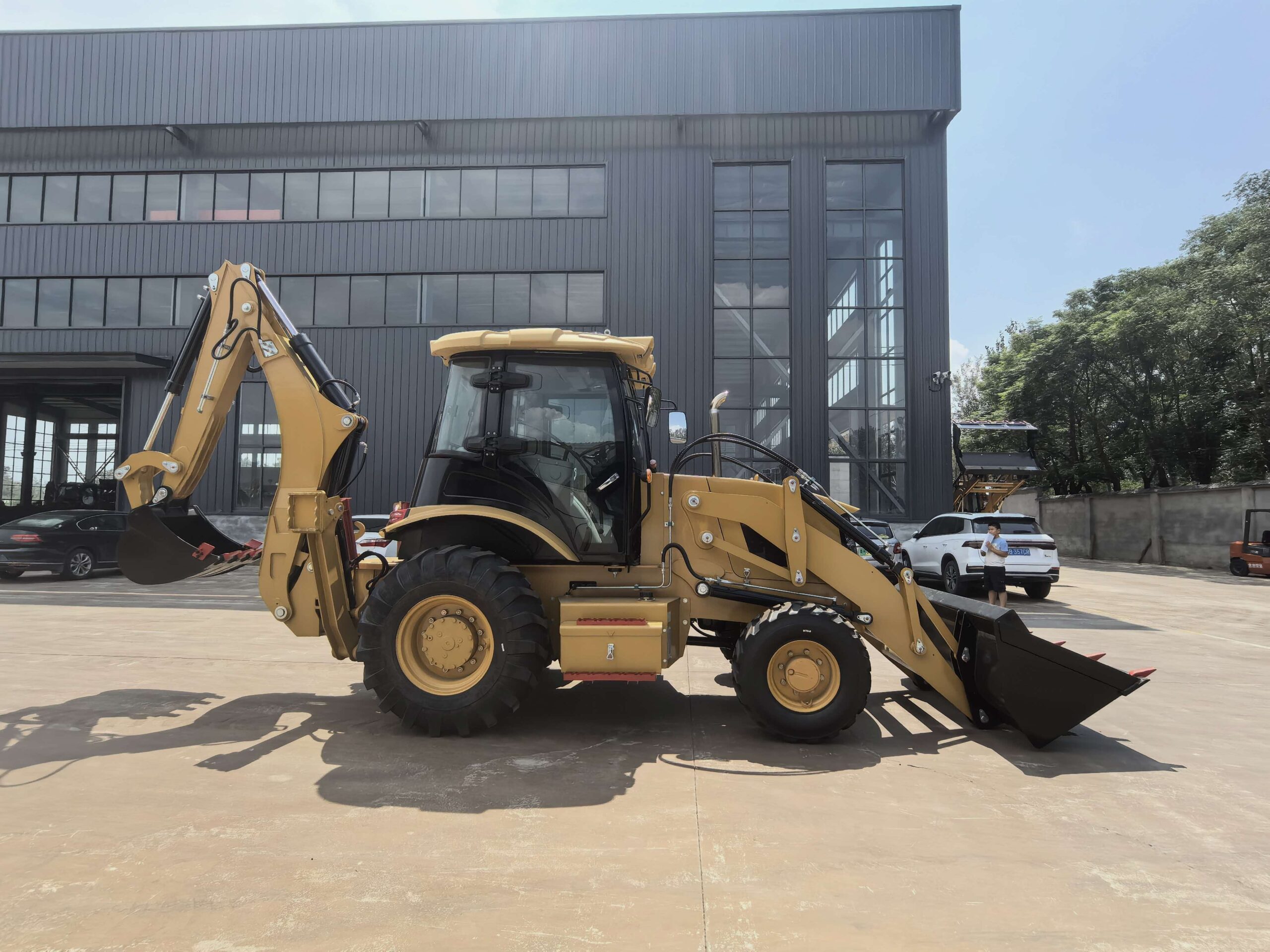

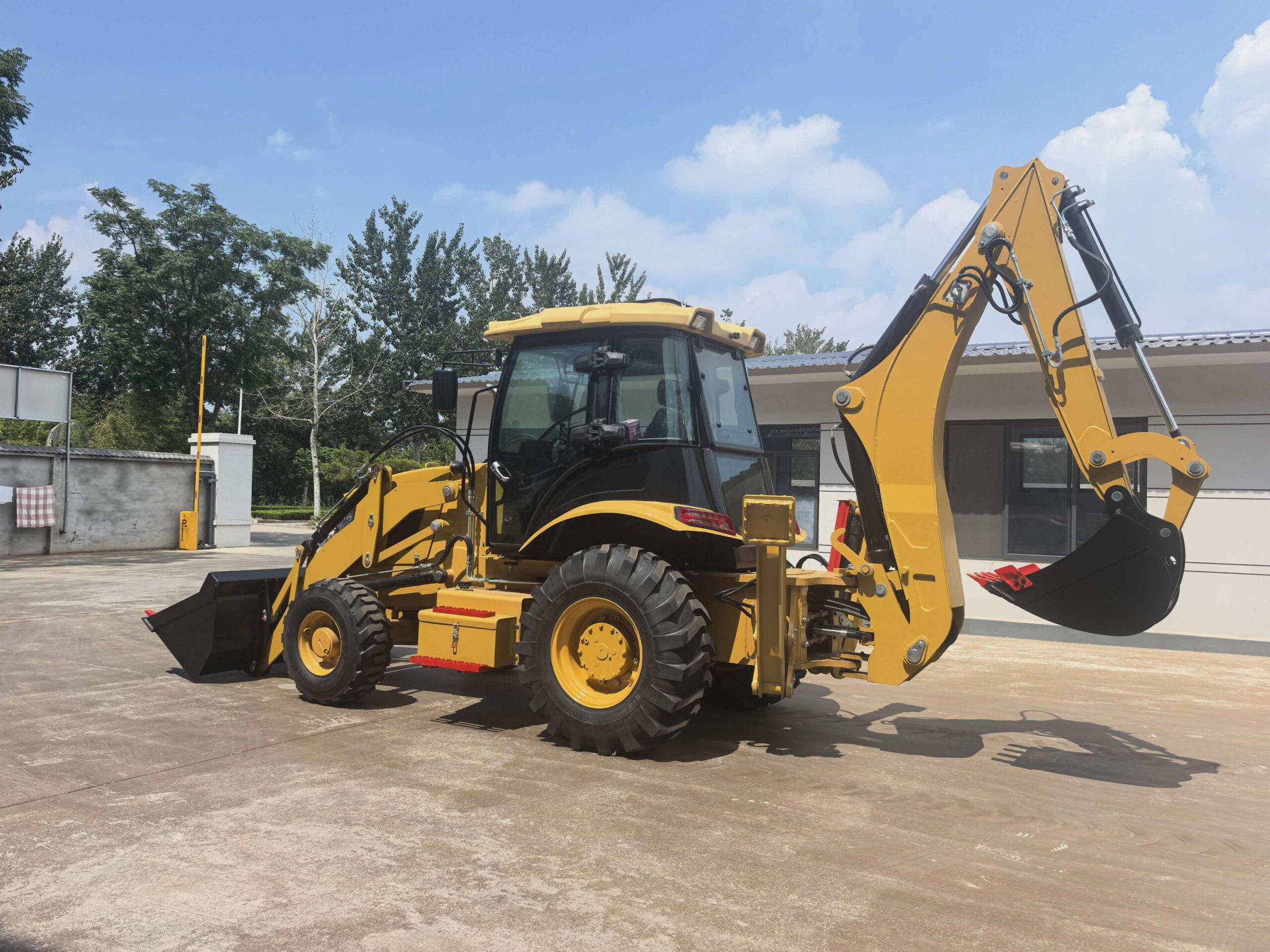

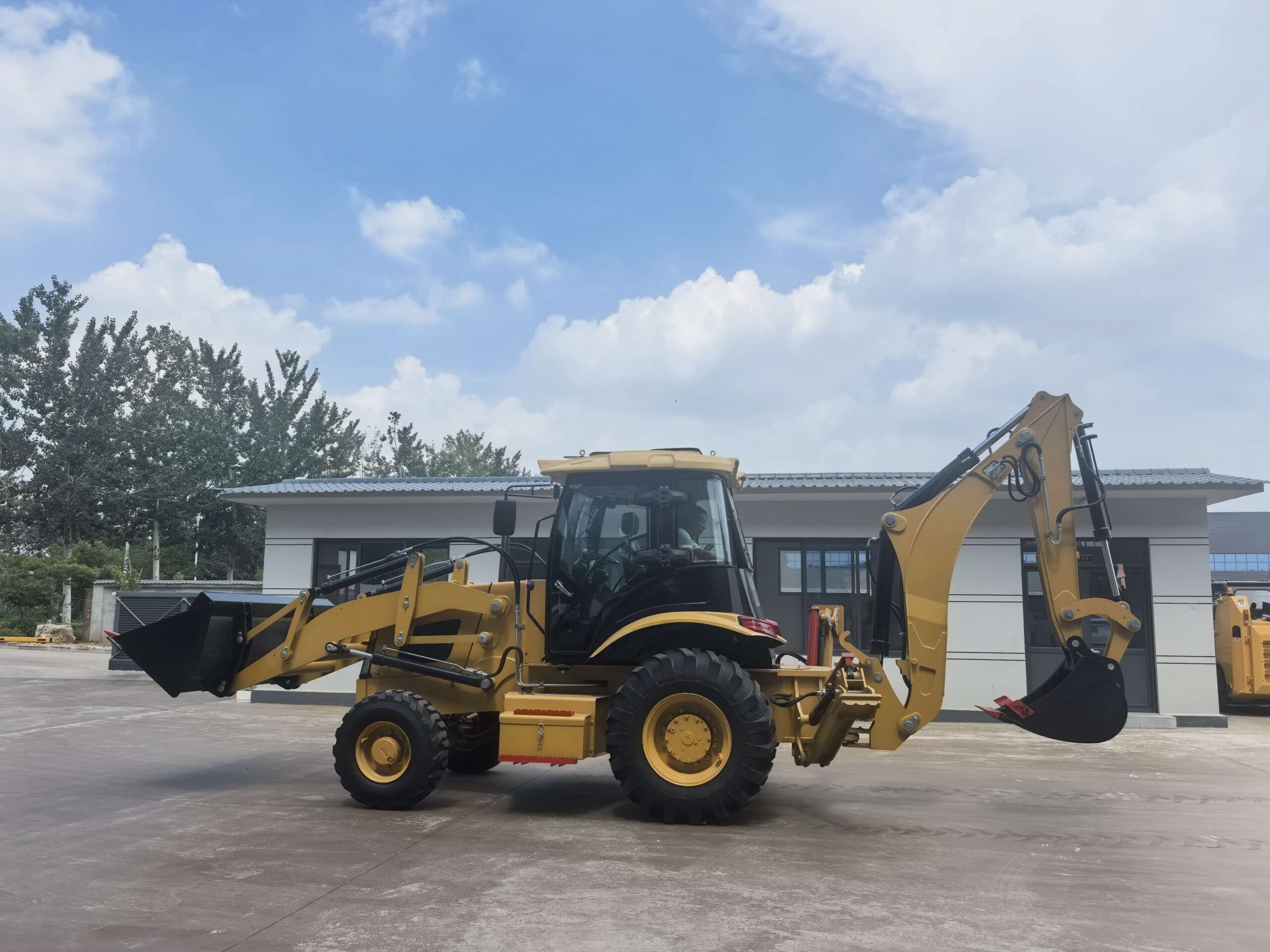

The RB420F combines a front loader and rear backhoe on a four-wheel-drive chassis. The verified specification lists a 2,800 kg rated load, 1.5 m³ loader bucket and 0.3 m³ backhoe bucket.
Standard maximum digging depth is 4,100 mm. A telescopic-arm option extends the listed maximum digging depth to 5,000 mm.
Verified four-wheel-drive configuration for travel and jobsite movement.
1.5 m³ loader bucket with a 2,800 kg rated load and 2,700 mm dumping height.
0.3 m³ backhoe bucket with 4,100 mm standard maximum digging depth.
Optional telescopic arm increases the listed maximum digging depth to 5,000 mm.
| Parameter | RB420F |
|---|---|
| Operating Weight | 7,500 kg |
| Overall Dimensions (L × W × H) | 7,600 × 2,360 × 2,890 mm |
| Wheelbase | 2,250 mm |
| Minimum Ground Clearance | 300 mm |
| Engine | Yunnei diesel engine |
| Rated Power | 76 kW |
| Drive Type | Four-wheel drive |
| Maximum Speed | 30 km/h |
| Rated Load | 2,800 kg |
| Loader Bucket Capacity | 1.5 m³ |
| Dumping Height | 2,700 mm |
| Backhoe Bucket Capacity | 0.3 m³ |
| Maximum Digging Depth | 4,100 mm |
| Optional Telescopic-Arm Digging Depth | 5,000 mm |
Final specifications for the selected configuration are issued with the quotation.

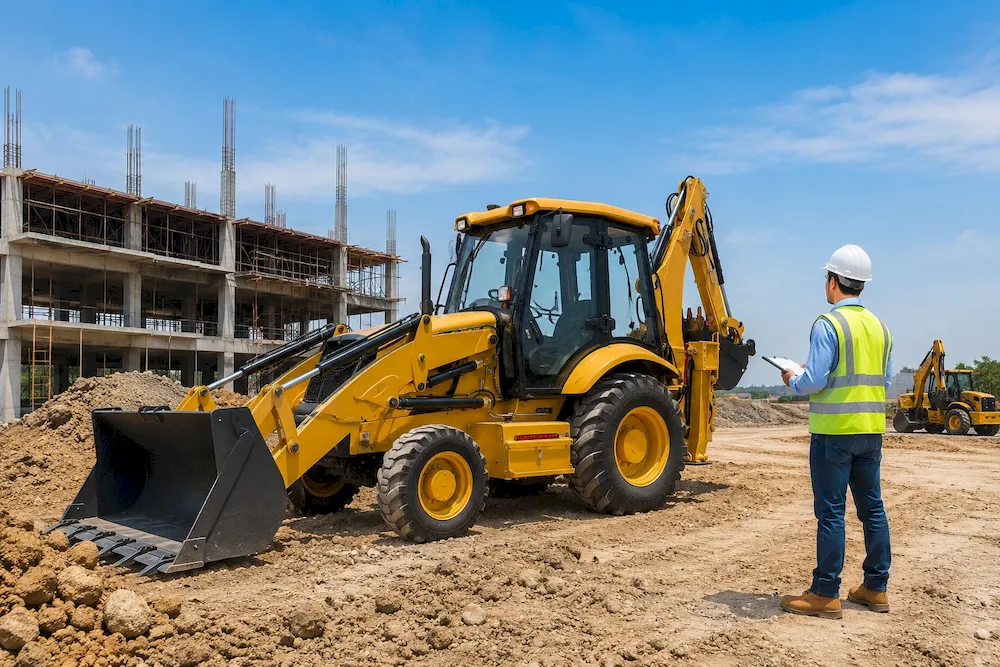

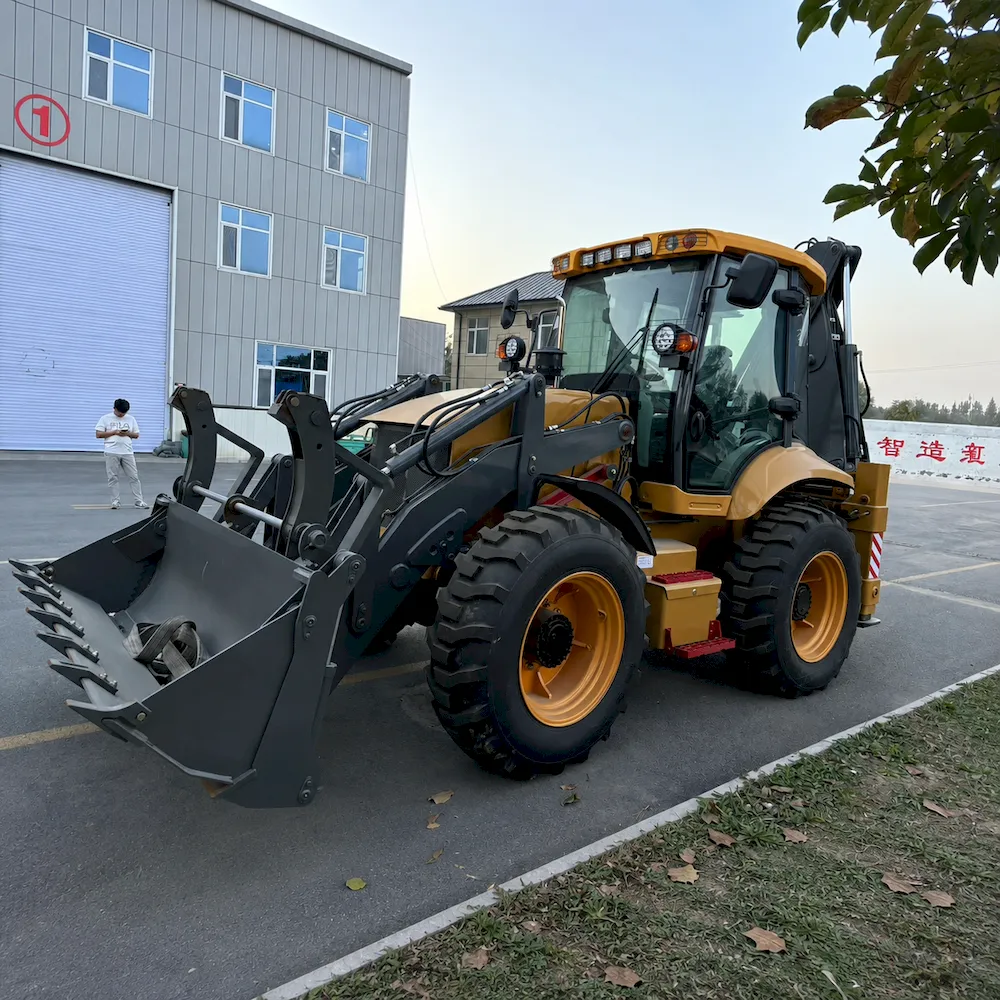

Application scenarios selected for this model.
The verified specification lists an operating weight of 7,500 kg.
Standard maximum digging depth is 4,100 mm. The optional telescopic arm is listed at 5,000 mm.
The loader bucket is 1.5 m³ and the backhoe bucket is 0.3 m³.
The verified rated load is 2,800 kg.
The source specification lists a 76 kW Yunnei diesel engine and four-wheel drive.
Its listed overall dimensions are 7,600 × 2,360 × 2,890 mm. Confirm the selected configuration and shipping plan in the quotation before arranging transport.
