RB420F vs RB388 Standard vs Luxury

The table is a starting point. It does not rank the models, because a project can value access, loading geometry, digging depth and verified configuration differently.

The RB420F is the lightest of the three at 7,500 kg, followed by the RB388 Standard at 8,500 kg and the RB388 Luxury at 9,300 kg. These values help screen transport equipment, route limits and working surfaces. They should not be converted into unsupported claims about traction, stability or productivity.

The delivered machine may include buckets, a telescopic arm or other options. Ask whether the published operating weight describes the exact quoted configuration. For transport planning, confirm both operating and shipping dimensions rather than relying on a category label.

The RB420F measures 7,600 × 2,360 × 2,890 mm. The RB388 Standard measures 7,600 × 2,380 × 2,890 mm. They have the same listed length and height, with a 20 mm difference in overall width.

The RB388 Luxury record uses separate dimensional entries: total length 6,400 ± 80 mm, overall width 2,450 ± 20 mm, bucket width 2,380 ± 20 mm and cab height 3,250 ± 10 mm. Because the format differs, confirm how the length was measured before using it for a tight shipping or building-clearance decision.

Measure the narrowest and lowest point from unloading area to work zone. A machine that fits the main road may still be blocked by a gate, cable, doorway or turning area.

Both models list a 1.5 m³ loader bucket and a 2,800 kg rated load. Their dumping heights differ: 2,700 mm for the RB420F and 2,800 mm for the Standard. If the machine must load a specific truck or hopper, compare the complete geometry rather than treating bucket capacity as proof that it can clear the side wall.

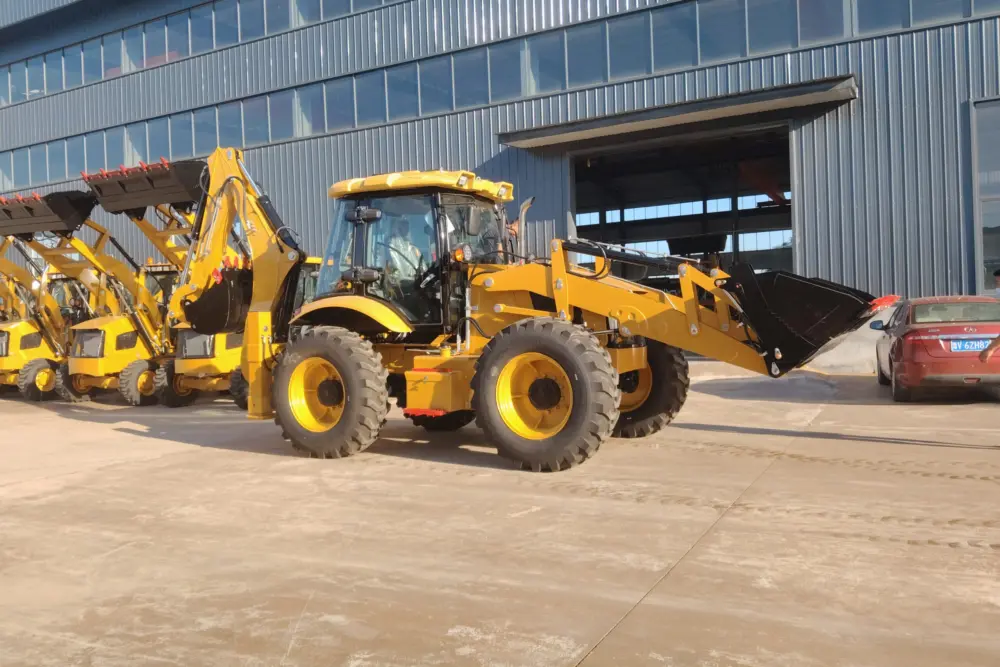

The Luxury lists a 1.2 m³ loader bucket, 2,500 kg rated load and 3,050 ± 50 mm dumping height. Its smaller listed bucket and rated load do not make it a lower or higher model for every job; its higher listed dumping height may be relevant where discharge geometry is the constraint.

Material density, bucket type and safe operating procedure influence actual loads. The values here are specification references, not permission to exceed a machine’s manual.

The RB420F and RB388 Standard each list a 4,100 mm standard maximum digging depth. The RB388 Luxury lists 3,820 ± 20 mm. All three list 0.3 m³ backhoe buckets.

Optional arm data creates an important difference. The RB420F record lists a 5,000 mm telescopic-arm depth and the RB388 Standard lists 5,300 mm. Neither figure should be used unless the telescopic arm is included in the written configuration. The Luxury source does not provide an equivalent optional figure, so its status is not stated rather than guessed.

The RB420F lists a Yunnei diesel engine rated at 76 kW. The RB388 Luxury lists a YCD4J22T-115 engine rated at 85 kW. The Standard’s engine and power are omitted because the supplier document contains conflicting entries. This is a reason to request a model-specific final specification before ordering.

The RB420F and RB388 Standard list maximum speeds of 30 km/h. The Luxury lists 32 km/h and a 4-forward/4-reverse transmission. Maximum speed is not an average site speed and should not be used to estimate cycle time without route and operating information.

The RB420F and RB388 Standard list a 2,250 mm wheelbase and 300 mm minimum ground clearance. The Luxury record lists 16.9-28 tyres but does not present the same wheelbase and clearance fields in the confirmed table. Missing fields should remain missing until supported.

When tyre type or ground condition matters, request the exact tyre specification. Four-wheel drive is listed for all three, but drive type alone does not establish suitability for soft soil, steep slopes or public-road travel.

Your screening requirements align with a 7,500 kg machine, 1.5 m³ loader bucket, 2,800 kg rated load and 4,100 mm standard digging depth. If the 5,000 mm telescopic figure is required, price and identify that option separately.

The shared 1.5 m³ loader, 2,800 kg rated load and 4,100 mm standard depth fit the job, while the 8,500 kg weight, 2,800 mm dumping height or 5,300 mm optional telescopic depth affect the decision. Resolve the conflicting engine data before final approval.

The project can accommodate its 9,300 kg weight and 2,450 ± 20 mm width, and its 3,050 ± 50 mm dumping height, 85 kW engine or stated transmission are relevant. Check that its 3,820 ± 20 mm digging depth and 1.2 m³ loader bucket meet the actual work.

A product table cannot confirm which bucket widths, couplers, tyres or cab features will be supplied. It also cannot establish the order’s inspection, warranty, parts, shipping or document package. Ask for these items in writing:

• Supplier identity and final model reference
• Engine plate and specification for the quoted unit
• Standard equipment versus options
• Bucket widths and attachment compatibility
• Arm type and digging-depth figure
• Final machine and packing dimensions
• Inspection evidence and destination documents
• Warranty and assistance terms
• Parts list, price and estimated availability
• Delivery and trade terms

Use one controlled table for all candidate models and keep the units consistent. Record the source date beside every value. If two supplier documents disagree, do not average the numbers or select the more attractive one. Mark the field unresolved and request a signed or otherwise attributable final specification for the quoted unit.

Photographs should be checked against the model, but they cannot establish internal configuration or numerical performance. The quotation should connect the public model name, supplier reference, specification and selected image set so the buyer and seller are discussing the same machine.

There is no evidence-based universal winner. The RB420F, RB388 Standard and RB388 Luxury occupy different documented positions, but “best” depends on a measurable task. Begin with the deepest excavation, receiving height, loader requirement and access limits. Eliminate models that do not fit, then resolve options and commercial terms.

For current source-backed details, use the backhoe loader overview and individual product pages. Treat any value that differs from the controlled product table as a question to resolve, not as an automatic update.

Comparison tables become unreliable when one source uses metres, another millimetres and a third omits whether a value is standard or optional. Convert units only for presentation and retain the original source value in the evidence record. Label operating weight, rated load, loader bucket capacity, backhoe bucket capacity and maximum digging depth separately.

Do the same for dimensional tolerances. The RB388 Luxury source includes tolerances on several values, while the other product records use fixed published numbers. Keeping those formats visible helps the buyer see where a specification is exact, rounded or subject to the stated tolerance.

Before choosing, ask a technical reviewer to trace every decisive value back to the controlled model record. Confirm that no optional depth, photograph or unresolved engine entry has been presented as standard equipment. Then attach the reviewed table to the quotation.

They share several headline values, but the Standard is listed 1,000 kg heavier, has a 100 mm higher dumping height and a deeper optional telescopic-arm figure. The supplied engine entries conflict, so the value is omitted from this comparison.

No. It lists a 1.2 m³ loader bucket. The RB420F and RB388 Standard each list 1.5 m³.

The RB420F and RB388 Standard both list 4,100 mm standard maximum digging depth. Optional telescopic figures are separate.

That cannot be decided from weight alone. Compare final weight, length, width, height, packing arrangement, route restrictions and transport equipment for the quoted configuration.

The available supplier source contains conflicting engine entries. Ray Bridge omits the field instead of selecting an unsupported value.

Do not assume so. Ask for a written compatibility and price list for the exact model. Gallery images are visual references, not the final configuration contract.
