Backhoe Loaders for Road & Drainage Work

Start with a task schedule instead of a machine shortlist. Typical work categories may include culvert trenches, side drains, utility crossings, foundation excavations, loading aggregate, moving spoil and backfilling. Each category creates a different specification question.

• How deep and wide is the excavation?
• What bucket width and profile are required?
• What material will be loaded and where will it be discharged?
• What truck or hopper height must the loader clear?
• How much space is available for stabilisers and boom movement?
• What width, height and weight restrictions exist along the route?
• Will an optional telescopic arm be required?

Answering these questions turns a broad use case into a specification checklist.

The RB420F and RB388 Standard each list a standard maximum digging depth of 4,100 mm. The RB388 Luxury lists 3,820 ± 20 mm. These values help decide which machines remain in the initial comparison.

If the planned depth exceeds the standard figure, the RB420F record lists a 5,000 mm optional telescopic-arm depth and the RB388 Standard lists 5,300 mm. An optional depth is valid only when the telescopic arm is included and confirmed. It should never replace the standard depth in a general claim.

Maximum digging depth is not a complete trench plan. Consider ground level changes, the stand-off from an unsupported edge, pipe bedding, bottom shaping and the space needed to move spoil. The responsible contractor must establish a safe method for the real site.

All three models list a 0.3 m³ backhoe bucket capacity. Road drainage work may require a particular width for a pipe, channel or utility crossing. Capacity does not identify width, teeth or profile, so the exact supplied bucket must be written into the configuration.

Where several trench sizes are planned, ask for attachment compatibility rather than assuming every bucket seen in a photo can be ordered. A quick coupler or additional bucket is also an order-specific item unless explicitly included.

The RB420F and RB388 Standard list 1.5 m³ loader buckets and 2,800 kg rated loads. The RB388 Luxury lists a 1.2 m³ loader bucket and 2,500 kg rated load. These are nominal comparison values; material density and safe handling procedures still control the actual load.

Dumping height matters when loading trucks or placing material over a barrier. The listed figures are 2,700 mm for RB420F, 2,800 mm for RB388 Standard and 3,050 ± 50 mm for RB388 Luxury. Measure the receiving equipment and check the required clearance and reach, not just the vertical headline.

The RB420F is listed at 7,600 × 2,360 × 2,890 mm, while the RB388 Standard is 7,600 × 2,380 × 2,890 mm. The RB388 Luxury lists 6,400 ± 80 mm total length, 2,450 ± 20 mm overall width and 3,250 ± 10 mm cab height.

On a road project, check low bridges, overhead utilities, temporary works, narrow shoulders, gates and turning points. The measurement method used for the Luxury length differs from the combined format of the other two records, so confirm it for tight transport decisions.

Published operating weights are 7,500 kg for RB420F, 8,500 kg for RB388 Standard and 9,300 kg for RB388 Luxury. Compare these figures with bridges, ramps, transport equipment and working surfaces. No website specification can replace a route survey or ground assessment.

The RB420F and RB388 Standard list maximum speeds of 30 km/h; the Luxury lists 32 km/h. These values do not establish safe road travel, legal registration or average movement speed. Local regulations, tyres, brakes, surface condition, load and the operating manual determine how the machine may travel.

If the machine will be transported rather than driven between sections, request final shipping dimensions and a packing plan. Do not assume a particular container or trailer method from the public dimensions alone.

All three Ray Bridge backhoe loaders are listed as four-wheel drive. That is relevant when comparing configurations, but it does not prove that a machine is suitable for mud, side slopes, loose shoulders or flooded ground. Tyres, weight distribution, operator practice and site controls also matter.

Ask for the exact tyre specification. The RB388 Luxury lists 16.9-28 tyres; comparable tyre details for the other quoted machines should be confirmed if they affect the project.

A backhoe loader can place digging and loading functions on one chassis, but a productive and safe sequence depends on layout. Before mobilisation, map the excavation line, spoil area, aggregate stockpile, truck route and backfill sequence.

1. Mark excavation and underground-service controls.
2. Identify a stable working position and required stand-off.
3. Confirm room for stabilisers and the backhoe swing.
4. Keep the loader travel path separate from people where practicable.
5. Place spoil so it does not overload the trench edge or block later work.
6. Plan backfilling and material placement around the completed structure.

This is a planning framework, not an operating instruction. Use the machine manual, trained personnel and local safety requirements.

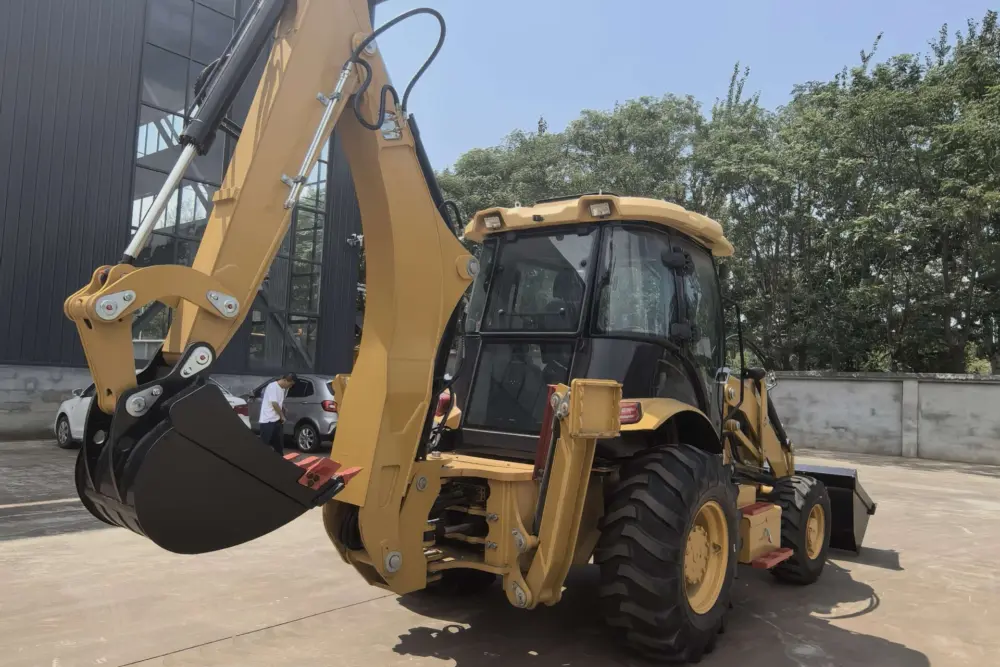

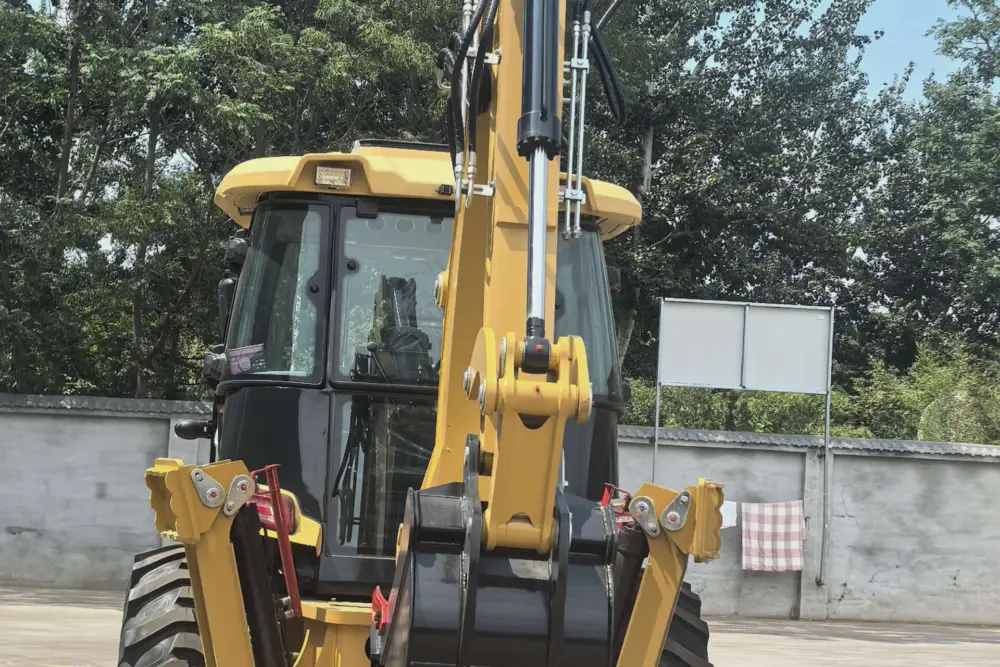

The 4,100 mm standard digging depth, 1.5 m³ loader bucket, 2,800 kg rated load and 7,500 kg operating weight may align with a roadwork specification. Its optional telescopic-arm figure is 5,000 mm.

It shares the 4,100 mm standard depth, 1.5 m³ loader bucket and 2,800 kg rated load, at a listed 8,500 kg operating weight. The optional telescopic depth is 5,300 mm. Resolve the engine and power data before purchase.

Its listed 3,050 ± 50 mm dumping height and 85 kW rated power may be relevant, while the 1.2 m³ loader bucket, 2,500 kg rated load, 3,820 ± 20 mm digging depth and 9,300 kg operating weight must fit the project.

Road projects can have destination-specific document, transport and configuration requirements. The current knowledge base does not support a universal certificate, warranty period, parts policy or delivery promise for every model. Ask for the applicable package in writing.

The quotation should show the exact model, engine, arm, buckets, tyres, cab options, dimensions, inspection evidence, required documents, warranty terms, spare-parts scope and delivery responsibility. If a fact is not yet available, omit it until the supplier provides evidence.

• Destination country and project location conditions
• Deepest and widest excavation
• Pipe, culvert or channel dimensions
• Loader material and receiving height
• Narrowest access width and lowest clearance
• Route and bridge weight restrictions
• Required arm and bucket options
• Expected transport method
• Required inspection and document set
• Written warranty, parts and assistance terms

Use this information with the Road Construction application page and the current backhoe loader specifications.

A useful answer should connect each recommendation to a measurable requirement. “This model is popular” is not enough. Ask the supplier to show which published depth, bucket, weight or dimension addresses the task. If the answer depends on an option, the option should be named and priced. If it depends on a certificate, inspection or service term, request the order-specific evidence.

Keep the project requirement sheet beside the quotation during review. Mark every line as supported, not applicable or omitted. This simple discipline makes it harder for a generic sales description to replace the actual roadwork constraints.

Once work begins, compare the planned trench dimensions, loading sequence and route assumptions with observed conditions. This review may change bucket requirements, spoil placement or transport between sections. It does not change the machine’s documented specification; it improves how the project uses verified information.

A backhoe loader has a rear excavating arm, but suitability depends on the required trench depth, width, bucket, ground conditions and safe setup. Compare those requirements with the confirmed model specification.

RB420F and RB388 Standard both list 4,100 mm standard maximum digging depth. RB388 Luxury lists 3,820 ± 20 mm.

Only if the required reach or depth exceeds the confirmed standard-arm envelope or the work method needs it. Include the option and its specification in the quotation.

The front loader is intended for material handling, but actual material, density and safe load matter. Compare the listed bucket capacity, rated load and dumping geometry with the task.

The models have published maximum-speed values, but legal and safe travel depends on local rules, route conditions and configuration. Confirm the transport plan separately.

Send trench dimensions, material type, truck or hopper height, access limits, route restrictions, attachments, destination and required documents. This allows unresolved items to be identified before ordering.
